Transtector
DC Surge Protector, DIN-Rail, 200 Vdc, 40 kA

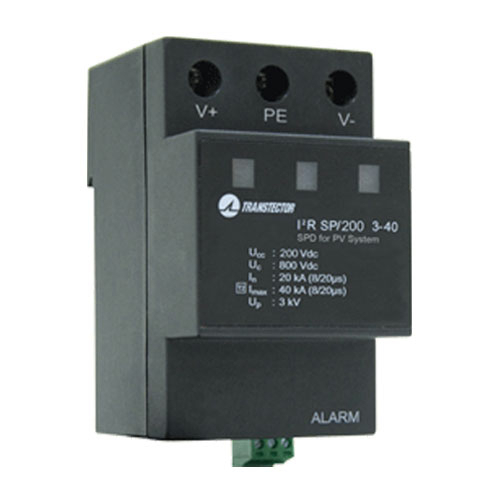

Transtector 1104-11-104 DC Surge Protector, DIN-Rail, 200 Vdc, 40 kA

Part #:
1104-11-104
Condition:
Brand New

Choose Service Voltages (Vdc)

Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Certifications IEC 61643-1
  • Form Factor DIN-Rail
  • Housing Material and Plating PA66
  • Service Voltages (Vdc) 200
  • Mount Type DIN-Rail
  • Response Time 25 ns
  • Humidity 95% Non-Condensing
  • Indoor/Outdoor Indoor
  • Surge Protection Technology MOV
  • 8/20µs Surge Current 40 kA
  • Vpl 8/20µs L-G 1,500 Vpk
  • Maximum Continuous Operating Voltage (MCOV) MCOV DC: 250 Vdc
  • Service Voltages 200 VDC
  • Service Wiring Terminal Screw Clamp Terminal: #6 AWG Stranded Service Terminal Wire 2: #4 AWG Solid
  • Status Indication Terminal 3-Position Screw Terminal: #22 to #16 AWG
  • Temperature Operating Range -40 to +70 deg C
  • Temperature Storage Range -40 to +70 deg C
  • Surge Protection Modes Supply to RET, Supply to GND, RET to GND
  • Nominal Discharge Surge Current (In) 20 kA
  • Environmental Protection (IP) Rating IP20
