Transtector
AC Surge Protector, 240/415 Vac, 3-Phase, Wye

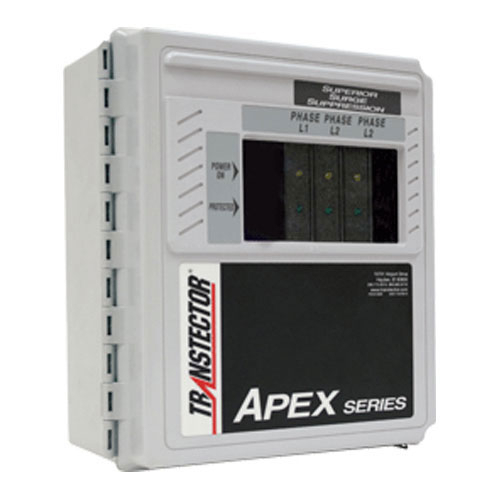

Transtector 1101-494 AC Surge Protector, 240/415 Vac, 3-Phase, Wye

Part #:
1101-494
Condition:
Brand New

Choose Service Voltages (Vac)

Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Certifications UL 94-5V
  • Form Factor Panel
  • Service Voltages (Vac) 240/415
  • Housing Material and Plating Fiberglass
  • Service Type 3-Phase Wye
  • Protection Modes L-L, L-N
  • Mount Type Panel
  • Response Time 5 ns
  • Humidity 90% non-condensing
  • Indoor/Outdoor Outdoor
  • Surge Protection Technology SASD, MOV
  • 8/20µs Surge Current 30 kA
  • Nominal Discharge Current Rating (In) 10 kA
  • UL Compliant Yes
  • Maximum Continuous Operating Voltage (MCOV) L-L: 550 Vac L-N: 275 Vac
  • VPR 8/20µs 600 at 500A Vpk
  • Temperature Range (Operational) -30 to +65 deg C
  • Service Voltages 240/415 Vdc
  • SCCR (Short Circuit Current Rating) 65 kAIC
  • Service Wiring Terminal Terminal: #4 to #10 AWG
  • Status Indication Terminal 10 Pin Connector: #14 to #22 AWG
