Transtector
DC Surge Protector, Indoor, DIN-Rail, 24 Vdc

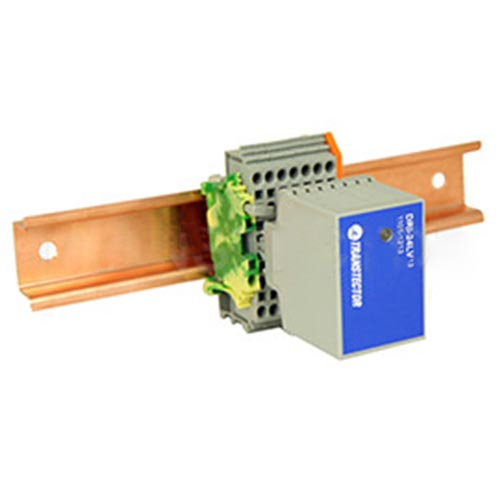

Transtector 1101-1213 DC Surge Protector, Indoor, DIN-Rail, 24 Vdc

Part #:
1101-1213
Condition:
Brand New
Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Current Rating 5 A
  • Form Factor DIN-Rail
  • Housing Material and Plating Nylon
  • Mount Type DIN-Rail
  • Response Time 5 ns
  • Humidity 90% (non-condensing), 99% non-condensing
  • Indoor/Outdoor Indoor
  • Surge Protection Technology SASD
  • Temperature Continuous -10 to +55 deg C
  • Vpl 8/20µs L-G 110 at 1000A Vpk
  • 4 Position Cage Clamp Terminal Block #20 to #2 AWG
  • Temperature Momentary -10 to +55 deg C
  • UL Compliant UL 60950-1
  • Service Voltages 24 VDC
  • 3-Position Screw Terminal #28 to #12 AWG
  • Vpl 10/1000µs 48 at 100A Vpk
  • Operating Range Temperature -40 to +85 deg C
  • Storage Range Temperature -40 to +85 deg C
  • Maximum Continuous Operating Voltage (MCOV) MCOV DC 34 Vdc
  • Surge Protection Modes Supply to GND, Supply to Supply
  • Spring Cage Clamp #28 to #12 AWG
