Spindle Mount:: Spindle Mount: D1-6

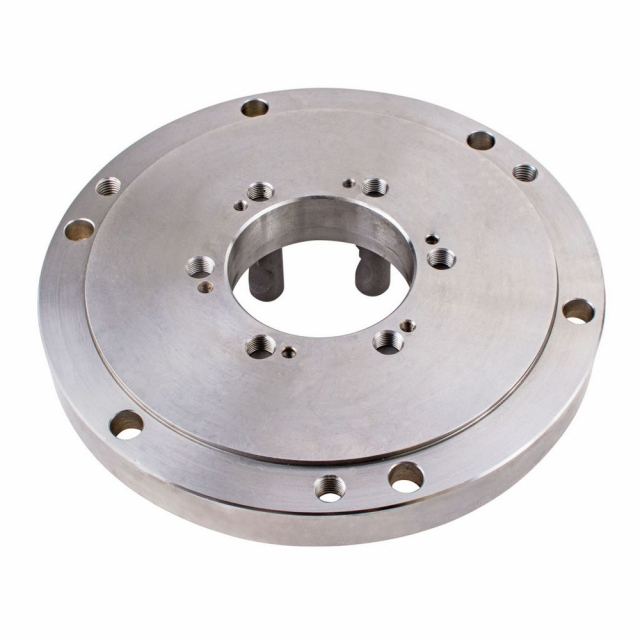

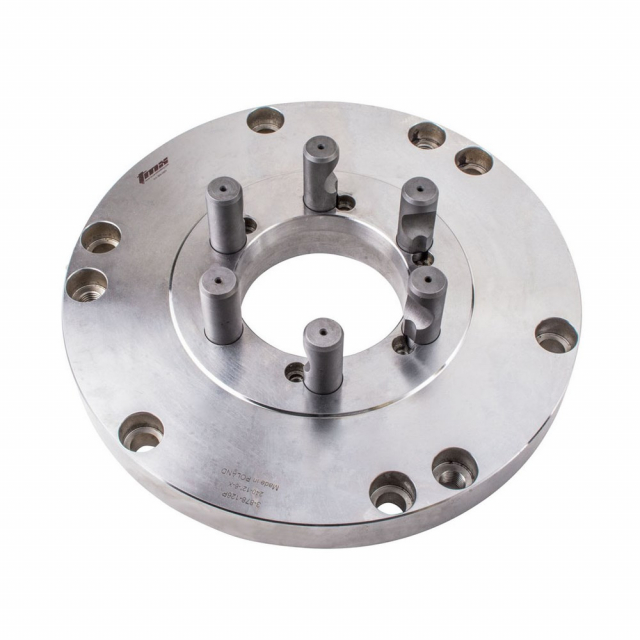

Toolmex, 3-878-066P, Type D 6" Fully Finished Steel Backplate for Precision Scroll Chuck, D1-6

Features:

Designed for use with TMX Precision Scroll Chucks
All backplates are made of hardened steel
Backplates are fully machined

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Spindle Mount

D1-6

For use for Chuck Size

6"

For use with Chuck Type

Scroll

Machined

Fully Finished

Dimensions:

A (in): 4.05
B (in): 4.92
C (in): 5.51
D1 (in): 6.29
E (in): 5.25
G (in): 1.43
G1 (in): 0.13
S: 3xM10
S2 (in): 6x0.413

Weight (lb)

4.1

Product Details

Spindle Mount

D1-6

For use for Chuck Size

6"

For use with Chuck Type

Scroll

Machined

Fully Finished

Dimensions:

A (in): 4.05
B (in): 4.92
C (in): 5.51
D1 (in): 6.29
E (in): 5.25
G (in): 1.43
G1 (in): 0.13
S: 3xM10
S2 (in): 6x0.413

Weight (lb)

4.1

Note: Please read description carefully. Do not base your order on the picture presented.
