Buy Toolmex 3-866-1600P, SET-TRU 3-Jaw Forged Steel Body Scroll Chuck, 16"

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Pictures shown are for illustrative purpose only. Actual product may vary

Options and Related Products

Chuck Size:: Chuck Size: 16"

3-Jaw Super Precision SET-TRU Forged Steel Body Scroll Chuck with Two-Piece Hard Reversible Jaws, Plain Back 16in, TMX by Toolmex (Compare to Bison® Models 3564 & 3565 - series 7-866)

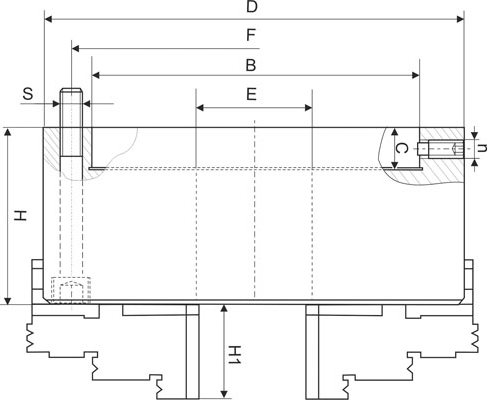

Diameter D	15.748"
Recess Diameter B	11.781"
Recess Depth C	0.866"
Hole Diameter E	5.354"
Bolt Circle F	6.752"
Body Height H	5.118"
Jaw Height H1	2.638"
Number of bolts and thread size S	6 x M16x2
Fine Adjustment Screw n	8 x M18x1

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Selling Unit	EA
Chuck Type	SET-TRU Scroll
Chuck Size	16"
Body Material	Forged Steel
Number of Jaws	3
Jaw Type	2pc
Weight	222 lbs
Mount Type	Front
Gripping Force	6500 daN
Max RPM	1800 RPM
Runout (T.I.R.)	0.0006"

Product Details

Selling Unit	EA
Chuck Type	SET-TRU Scroll
Chuck Size	16"
Body Material	Forged Steel
Number of Jaws	3
Jaw Type	2pc
Weight	222 lbs
Mount Type	Front
Gripping Force	6500 daN
Max RPM	1800 RPM
Runout (T.I.R.)	0.0006"

Note

Note: Please read description carefully. Do not base your order on the picture presented.
