Manufacturer warranty Description
PE-604WU Includes Only:
- 1 x Pendant Speaker
- 1 x GRIPPLE No.1
- 1 x GRIPPLE No.2
- 1 x Release key (for GRIPPLE )
- 1 x Safety wire (Φ1.5 mm (Φ0.06)
Features:
- Stylish design inspired by modern lighting fixtures
- Ideally suited for BGM & announcements
- 8 Ω and 25 V/70 V/100 V operation
- Input impedance is easily changed with a rotary switch on the top of the speaker
- With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
- UL certified: UL Code: UL1480 UUMW, ULC-S541
- Bass-reflex type

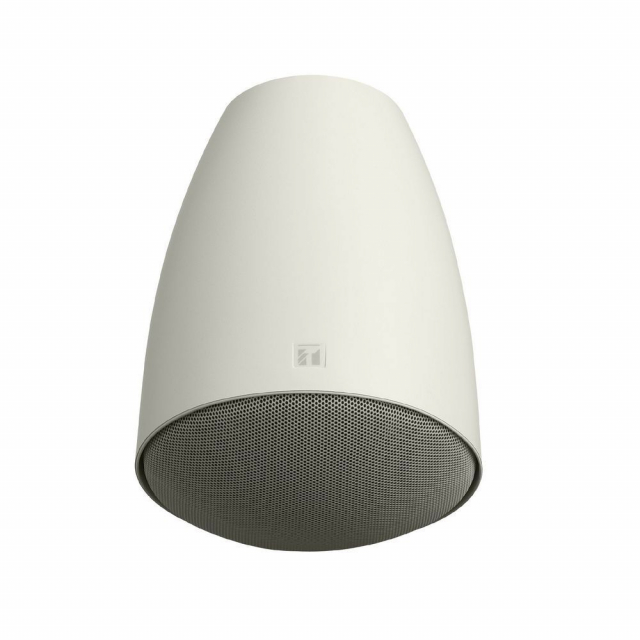

The PE-604BU is a pendant speaker designed for the installations suspended from a ceiling. A directly-attached 5 m (16.4 ft) hanging wire allows the speaker to be suspended from high ceilings. The PE-604BU is driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The PE-604BU is certified to UL 1480 UUMW and ULC-S541 standards. Using the supplied GRIPPLE(R) hangers will facilitate the speaker mounting height adjustment.
For more information, please see
Data Sheet and Manual
Technical details
- Color White
- Weight 2.9 kg (6.39 lb) (unit only)
- Enclosure Bass-reflex type
- Dimensions 186 x 275 (H) mm (7.32 x 10.83") (unit only)
- Frequency Response 110 Hz - 20 kHz (-10 dB)
- Finish Enclosure: ABS resin, white (RAL 9010 equivalent) Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint
- Operating Temperature -10 °C to +50 °C (14 °F to 122 °F)
- Sensitivity 90 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise)
- Rated Impedance 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W) Low impedance: 8 Ω
- Speaker Component 12 cm (5) cone-type + balanced dome-tweeter (coaxial)
- Rated Input 60 W (100 V, 70 V line, 8 Ω), 7.5 W (25 V line)
- Compliance/Certifications UL 1480 UUMW, ULC-S541
