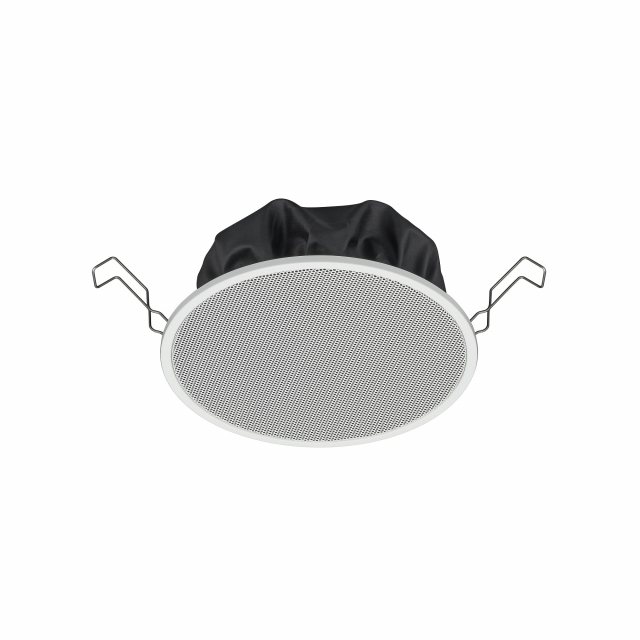

Buy TOA PC-1860, Ceiling Mount Speaker, 80 Hz - 20 kHz, 3/6W

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Frequency Response:: Frequency Response: 80 Hz - 20 kHz

All metallic construction, ideal for use in a voice alarm system or BGM system. It feature spring clamp mechanism for easy mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connection easy and allow bridge wiring.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Rated Input	6 W (100 V line), 3 W (70 V line)
Rated Impedance	100 V line: 1.7 k Ohm (6 W), 3.3 k Ohm (3 W), 6.7 k Ohm (1.5 W), 13 k Ohm (0.8 W) 70 V line: 1.7 k Ohm (3 W), 3.3 k Ohm (1.5 W), 6.7 k Ohm (0.8 W), 13 k Ohm (0.4 W)
Sensitivity	94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response	80 Hz - 20 kHz (peak -20 dB)
Speaker Component	12 cm (5") cone-type
Operating Temperature	-10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing Hole	Mounting hole: 150+/-3 mm (5.91"+/-0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method	Spring clamp
Applicable Cable	Solid wire: 0.5 - 3 mm^2 (AWG 20 - 12)
Connection	Push wire connection (bridging terminal-2 branch type)
Finish	Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint
Dimensions	180 x 70 (D) mm (7.09" x 2.76")
Weight	560 g (1.23 lb)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Rated Input	6 W (100 V line), 3 W (70 V line)
Rated Impedance	100 V line: 1.7 k Ohm (6 W), 3.3 k Ohm (3 W), 6.7 k Ohm (1.5 W), 13 k Ohm (0.8 W) 70 V line: 1.7 k Ohm (3 W), 3.3 k Ohm (1.5 W), 6.7 k Ohm (0.8 W), 13 k Ohm (0.4 W)
Sensitivity	94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response	80 Hz - 20 kHz (peak -20 dB)
Speaker Component	12 cm (5") cone-type
Operating Temperature	-10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing Hole	Mounting hole: 150+/-3 mm (5.91"+/-0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method	Spring clamp
Applicable Cable	Solid wire: 0.5 - 3 mm^2 (AWG 20 - 12)
Connection	Push wire connection (bridging terminal-2 branch type)
Finish	Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint
Dimensions	180 x 70 (D) mm (7.09" x 2.76")
Weight	560 g (1.23 lb)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
