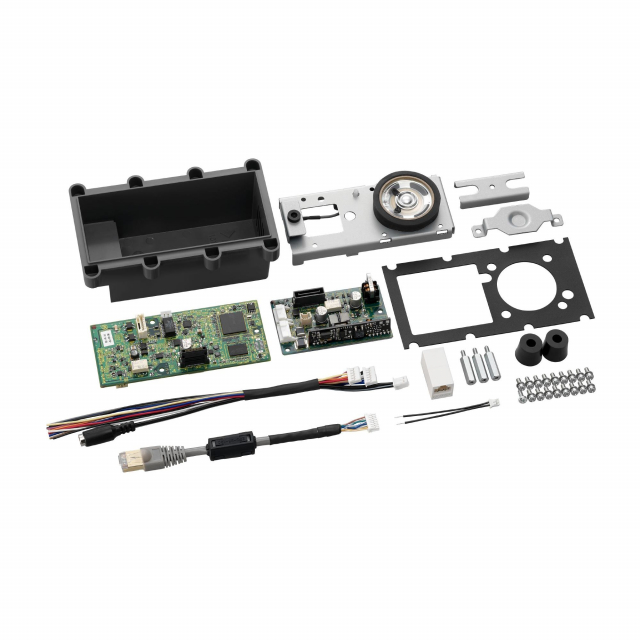

Buy TOA N-8640SB, PCB Kit Version of IP-65 Rated Outdoor Door Station

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

The N-8640sb is an IP station kit that allows contractors to fabricate custom door stations. A rear cover and gasket are provided for outdoor applications. It provides full duplex audio to/from Master Stations. The N-8640sb is equipped with one control input and five control outputs (1 relay and 4 open collector) for integration with security or other 3rd party systems. An external speaker output provides .5W at8Ω. External or internal speaker priority is programmable. The -8640sb may be powered by PoE (recommended).

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for TOA items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Power Source

Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))

Power Consumption

Use of the AC adapter (12 V DC): 3.5 W (station only), Use of the PoE (48 V DC): 5 W

Speech Method

Hands-free conversation

Audio Frequency Range

300 Hz - 7 kHz

Hands-free

Speaker: 3.5 cm (1.38") cone-type, maximum output 0.5 W, 8 Ohm
Microphone: Omni-directional electret condenser microphone

Control Input

1 channel, no-voltage make contact input, open circuit voltage: 5 V DC,
short circuit current: 10 mA or less, unterminated ends

Control output

Open collector output, 4 channels, withstand voltage: 30 V DC,
control current: Max. 50 mA (4 output 1COMMON), unterminated ends
Relay contact output, 1 channel, withstand voltage: 30 V DC,
control current: Max. 500 mA, unterminated ends

External Speaker Terminal

Maximum output 0.5 W, 8 Ohm , unterminated ends

Network Section

Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: 0, *Reception only
Connector: LAN: RJ45 connector (PoE compatible)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)

Operating Temperature

-10 °C to +50 °C (14 °F to 122 °F)

Operating Humidity

90 %RH or less (no condensation)

Dimensions

79 (W) x 134 (H) x 53 (D) mm (3.11" x 5.28" x 2.09")
(Complete assembly of component parts)

Weight

350 g (0.77 lb) (Total weight)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Power Source

Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))

Power Consumption

Use of the AC adapter (12 V DC): 3.5 W (station only), Use of the PoE (48 V DC): 5 W

Speech Method

Hands-free conversation

Audio Frequency Range

300 Hz - 7 kHz

Hands-free

Speaker: 3.5 cm (1.38") cone-type, maximum output 0.5 W, 8 Ohm
Microphone: Omni-directional electret condenser microphone

Control Input

1 channel, no-voltage make contact input, open circuit voltage: 5 V DC,
short circuit current: 10 mA or less, unterminated ends

Control output

External Speaker Terminal

Maximum output 0.5 W, 8 Ohm , unterminated ends

Network Section

Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: 0, *Reception only
Connector: LAN: RJ45 connector (PoE compatible)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)

Operating Temperature

-10 °C to +50 °C (14 °F to 122 °F)

Operating Humidity

90 %RH or less (no condensation)

Dimensions

79 (W) x 134 (H) x 53 (D) mm (3.11" x 5.28" x 2.09")
(Complete assembly of component parts)

Weight

350 g (0.77 lb) (Total weight)

Return and Warranty

Please note that return requests for TOA items must be submitted within 14 days after the delivery date.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
