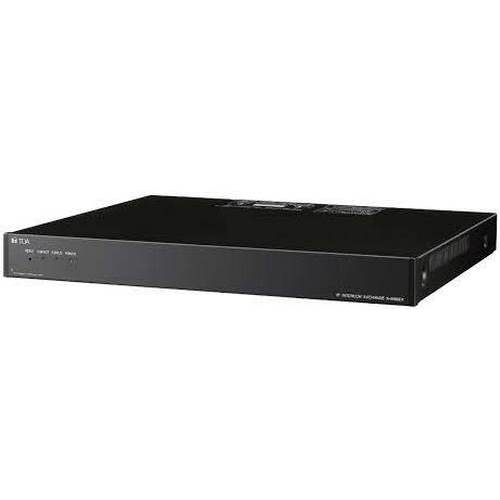

The N-8000EX IP Intercom Exchange uses packet audio technology to permit connection of up to 16 N-8000 series 2-wire master or door stations. Master stations and door stations use the same unshielded twisted pair wiring. Each N-8000EX supports up to 8 external voice links and 4 internal voice links. The N-8000EX supports the audio trigger function. The N-8000EX includes two balanced line level analog audio output channels and two relay outputs. The exchange may be used as a stand-alone system (requires at least one master station) or connected to an N-8000 IP intercom system over LAN or WAN.
Discontinued
Technical details
Main features
- Dimensions 420 x 44.3 x 356 mm (W x H x D)
- Type IP Intercom Exchange
- Finish Steel plate, pre-coated, 30% gloss, black
- Power Consumption 50 W (at rated), 75 W (max.)
- Network 10BASE-T/100BASE-TX (Automatic-Negotiation)
- Operating Temperature 0 °C to +40 °C
- Operating Humidity 90 % RH or less (no condensation)
- Power Source 220 - 240 V AC, 50 / 60 Hz
- Transmission Range Max. 1500 m (ø 0.65 mm, Loop resistance less 170 Ohm ) / 2,900 m (ø 0.9 mm)
- Network Protocol TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP
- Paging Output Audio: 2 channels max. 0 dBV, 600 Ohm , balanced, detachable terminal block Control: 2 channels, no-voltage make contact output (24 V DC/0.5 A), removable terminal block
- Line Capacity 16
- Wiring method 1 set of twisted pair cable
- Audio packet transmission system Unicast, Multicast
- Voice packet loss recovery silence insertion
- Audio delay time 80 ms, 320 ms (controllable on the software)
- Applicable model N-8050DS, N-8031MS, N-8000MS, N-8010MS, N-8011MS, N-8033MS, N-8065MS Q-TEE, N-8020MS, N-8050SB, N-8050SB
- Speech link Internal: 4 / External: 8
