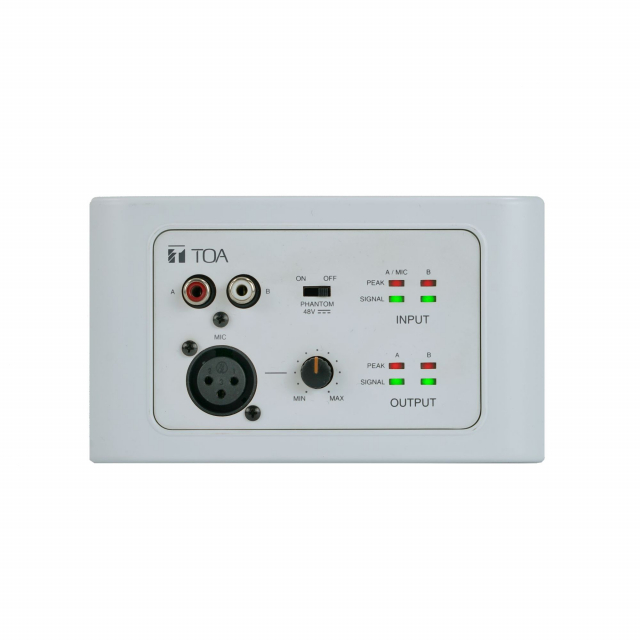

TOA M-822IO-AM Remote Audio Input Output Panel, White
Brand:
TOA
Part #:
M-822IO-AM
Condition:
Brand New
Brand New $574.00 /Each
$711.00 You save $137.00 19%
Manufacturer warranty Description
Features:
- Built-in A/D and D/A converter
- 2 analog inputs (MIC/ stereo line)
- 2 analog outputs
- Phantom Power
- Input Sensitivity
- Direct power supply by network cable
- RD port IN, for connection to M-8080D
- 100m CAT5e cable length
Designed for exclusive use with the M-8080D, the M-822IO Remote Audio Input Output Panel providing 2x analog IN and 2x analog OUT. The device includes build A/D and D/A converters processing digital audio AES3 signals from to teh M-8080D.
Technical details
Main features
- Inputs RD In: Transmits and receives AES3 digital audio plus control data Connect to M-8080D or M-804EX, RJ45 connector Audio input MIC Input: -48 dBV, 5.1 kOhm, electronic balanced, XLR connector Line input A-B: 0 dBV, 5.1kOhm, unbalanced, RCA pin jack
- Color White
- Dimensions 147 x 86 x 52 mm (W x H x D)
- Frequency Response 20 Hz - 20 kHz
- Outputs Audio Output Line output 1 - 2: 0 dBV, 1.8 kOhm, Maximum output 20 dBu (7.75V), electronic balanced, screw terminal (3 pins x 2)
- Indicator LED Audio Input: 2x Signal (Green), 2x Peak (Red) LED Audio Output: 2x Signal (Green), 2x Peak (Red)
- Operating Temperature 0°C to +40°C
- Operating Humidity 90% RH or less (no condensation)
- Power Source 24 V DC Powered by M-8080D or M-804EX or external
- Controls Volume / Routing
- Distortion less 0.01 %
- S/N Ratio 105 dB (A weighted)
- Crosstalk 79 dB
- Sampling frequency 48 kHz, 24 bit
