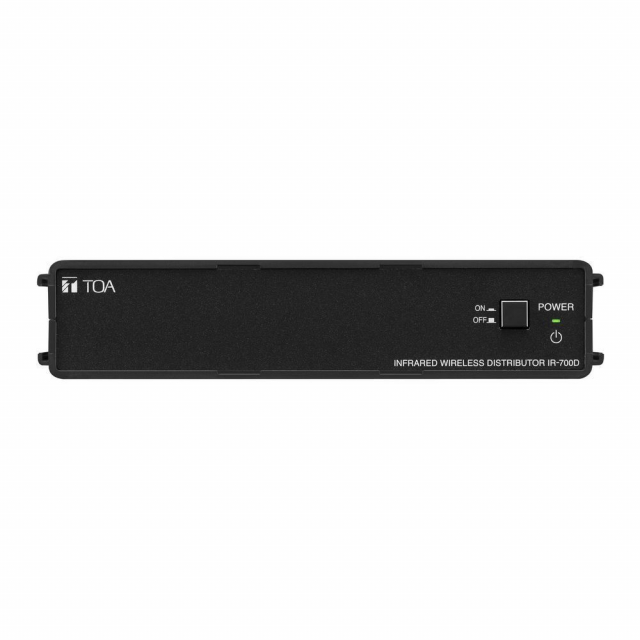

TOA IR-700D US Receiver Distributor for Microphone System

  • Brand TOA
  • Part # IR-700D US
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

IIR-700D US Includes Only:

  • 1 x Receiver distributor
  • 1 x AC adapter (DC cord length: 1.5 m (4.92 ft) )
  • 1 x AC Power cord (2 m (6.56 ft)
  • 1 x BNC plug-to-BNC plug cord (50 cm (1.64 ft)
  • 4 x Rubber foot

The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system.It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.

Dimensions

For more information, please see pdf file Data Sheet and pdf file Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Power SourceAC mains, 50/60 Hz (use of the supplied AC adapter)
Power Consumption25 W or less

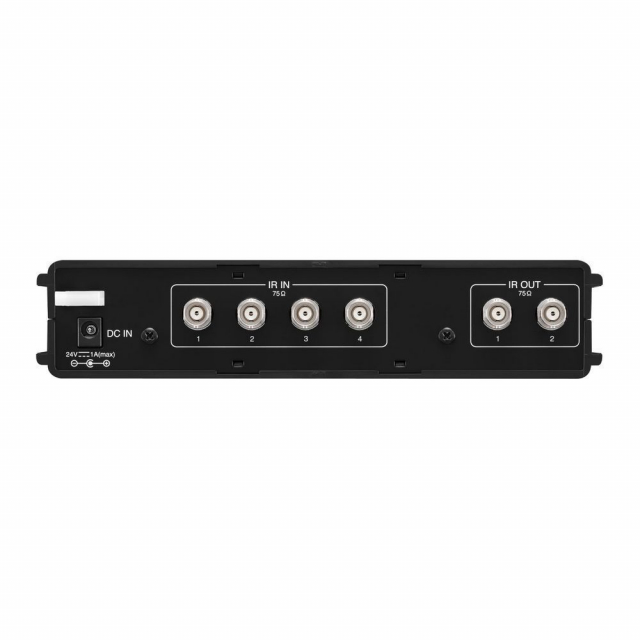

Input/Output4 mixing inputs, 2 distribution outputs
Band-Pass Frequency3.0 - 6.0 MHz
Gain0 dB (±3 dB)
Infrared Receiver Input75 Ω, BNC jack x 4 (Infrared wireless receiver's power source: 24 V DC, 800 mA max. in total of 4 terminals)
Number of Connectable Infrared Receiver16 (YW-1024 x 4)
Distribution Output75 Ω, BNC jack
Operating Temperature-10 °C to +50 °C (14 °F to 122 °F)
Operating Humidity30 % to 85 %RH (no condensation)
FinishCase: ABS resin, black

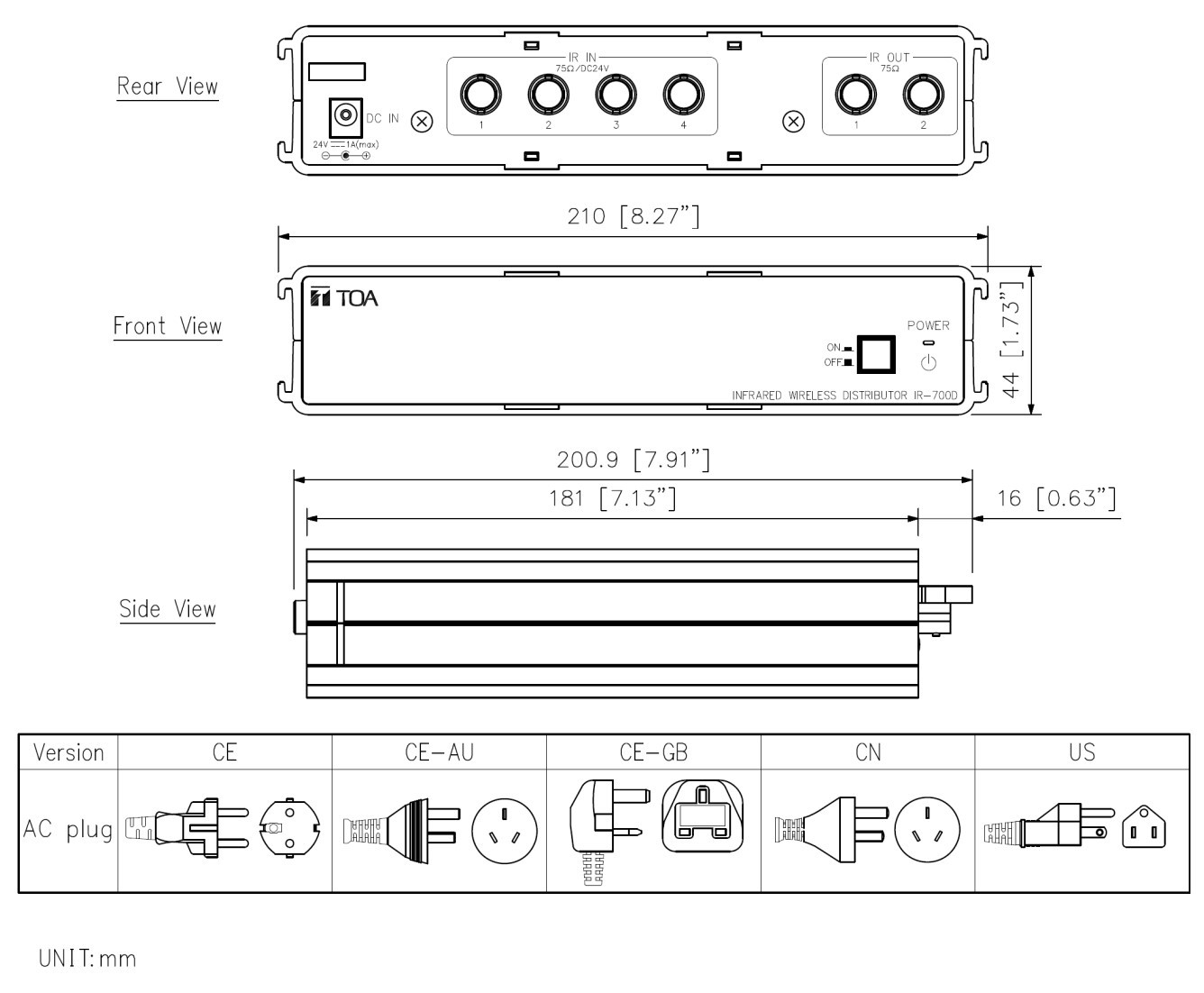

Dimensions210 (W) x 44 (H) x 200.9 (D) mm (8.27" x 1.73" x 7.91")
Weight640 g (1.41 lb) (unit only)
Product Details
Power SourceAC mains, 50/60 Hz (use of the supplied AC adapter)
Power Consumption25 W or less
Input/Output4 mixing inputs, 2 distribution outputs
Band-Pass Frequency3.0 - 6.0 MHz
Gain0 dB (±3 dB)
Infrared Receiver Input75 Ω, BNC jack x 4 (Infrared wireless receiver's power source: 24 V DC, 800 mA max. in total of 4 terminals)
Number of Connectable Infrared Receiver16 (YW-1024 x 4)
Distribution Output75 Ω, BNC jack
Operating Temperature-10 °C to +50 °C (14 °F to 122 °F)
Operating Humidity30 % to 85 %RH (no condensation)
FinishCase: ABS resin, black
Dimensions210 (W) x 44 (H) x 200.9 (D) mm (8.27" x 1.73" x 7.91")
Weight640 g (1.41 lb) (unit only)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
