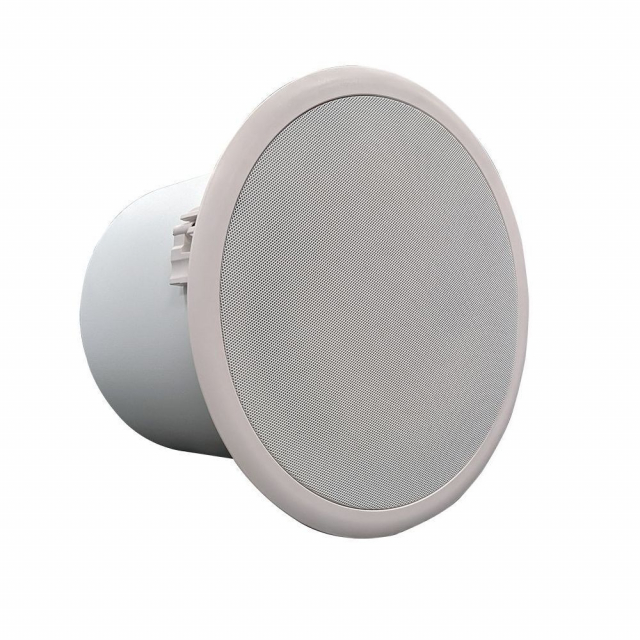

TOA FB-3862CU-AM High-Performance Flush-Mount Ceiling Subwoofer
Brand New
Manufacturer warranty Description
FB-3862CU-AM Includes Only:
- 1 x High-Performance Flush-Mount Ceiling Subwoofer
- 2 x Steel support ring (C-ring)
- 2 x Steel support rails
- 2 x Speaker hole template
- 1 x Operation manual
Features:
- Flush-mount ceiling subwoofer
- Low frequency enhancement
- 70 V and 8ohm capabilities
- Available metal enclosure for ceiling installation
The FB-3862CU is a high-performance flush-mount ceiling subwoofer assembly for low frequency enhancement of distributed loudspeaker systems. A 60W 70/100V transformer is included, and the bandpass design eliminates the need for a bi-amplified system. The 8-Ohm bypass allows for applications using electronic crossovers and dedicated low impedance power amplifiers. The FB-3863CU subwoofer rounds out TOA's F-Series premier speaker line to offer a full spectrum sonic experience suitable for retail environments, restaurants, lounges, conference rooms, and any application where music or video content require high quality sound.
For more information, please see
Data Sheet
Technical details
- Weight 6.45 kg (14.22 lbs.)
- Enclosure Bandpass
- Dimensions 383 mm diameter x 326.5 mm height (15.08" x 12.85")
- Frequency Response 47-200 Hz (-10dB)
- Finish White
- Impedance 70V line- 60W/30W/15W/7.5W/3.8W/1.9W with 8 Ω bypass
- Input Terminal Phoenix-type with parallel outputs (max 12AWG stranded cable)
- Power Handling 100W RMS 200W Peak (low impedance)
- Cable Requirements Max 12AWG stranded unshielded twisted pair (jacket per code)
- Mounting hole 350mm diameter (13.8")
- Speaker Component 8” driver with oiled paper cone and foam surround
- Rated Input 60W (70/100V)
- Sensitivity (1W, 1m) 88dB 1W/1m
