Manufacturer warranty Description
ER-1000A-BT Includes Only:
- 1 x Personal PA System
- 1 x Headset microphone (with headband and wind screen)
- 1 x Belt (attached to the main PA unit)
- 2 x Battery spacer
Features:
- Highly intelligible sound
- Fit for prolonged usage
- Audio player connectable
- Easy to operate
- Useful pouch for carrying accessories
- Able to be set on both sides of body

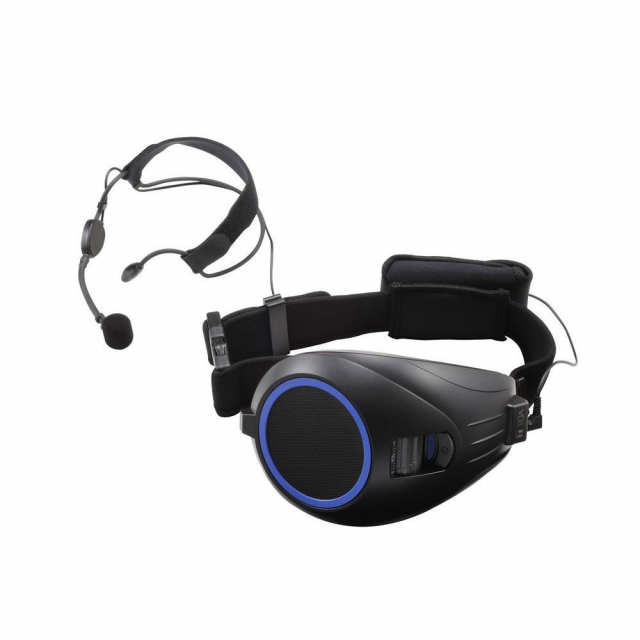

The ER-1000A-BT is a wearable, easy-to-operate, personal PA system attached to a waistband, with the capability of delivering both clear and powerful sound. The lightweight body of the main unit, features a slight curvature in its design, and fits perfectly on your waist to allow natural movement that minimizes unit disruption. This product is suited for various situations such as guided tours, sport classes, directing traffic and other security-and-safety-related applications, as well as attracting prospective customers at shows and storefronts.
For more information, please see
Data Sheet and Manual
Technical details
- Input MIC : –30 dB(*5), 3 kΩ, 3.5 mm (1/8") monaural mini-jack, phantom power supply. AUX6 : –10 dB(*5), 2 kΩ, 3.5 mm (1/8") stereo mini-jack (supporting monaural applications
- Weight Main PA unit (belt included, batteries excluded): 480 g (1.06 lb) Headset microphone: 50 g (0.11 lb)
- Dimensions 133 (W) x 96 (H) x 222 (D) mm (5.24" x 3.78" x 8.74") (belt excluded)
- Output 6 W (rated) and 10 W (max) when 6 AA batteries (9 V DC) are used. 3 W (rated) and 4 W (max) when 4 AA batteries(*1) (6 V DC) are used.
- Protocol A2DP
- Frequency Response 300 Hz - 14 kHz (deviation: -26 dB)
- Output Power Bluetooth Class 2
- Power Source Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces(*1) (6 V DC) Rechargeable nickel metal hydride (NiMH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces(*1) (4.8 V DC)
- Operating Range 10 m (32.81 ft)
- Codec SBC
- Belt length 55 - 120(*8) cm (1.8 - 3.94(*8) ft)
- Voice operation Approx. 8 hours (when 6 or 4 alkaline batteries are used) Approx. 7 hours (when 6 or 4 NiMH batteries are used), Approx. 100m or 320ft (when 6 alkaline batteries or NiMH batteries are used) Approx. 80m or 260ft (when 4 alkaline batteries(*1) or NiMH batteries are used)
- AUX stereo input operation (music reproduction) Approx. 9 hours (when 6 or 4 alkaline batteries are used) Approx. 9 hours (when 6 or 4 NiMH batteries are used)
- Headset Microphone Ear-on type, elrectret condenser microphone, sensitivity: -47 dB (0 dB = 1 V/1 Pa, 1 kHz)
- Communication Method Bluetooth Ver.4.2
- Front case ABS resin, black
- Rear case ABS resin, black
- Grille Surface-treated steel plate, black, paint
- Belt Elastic rubber, black
