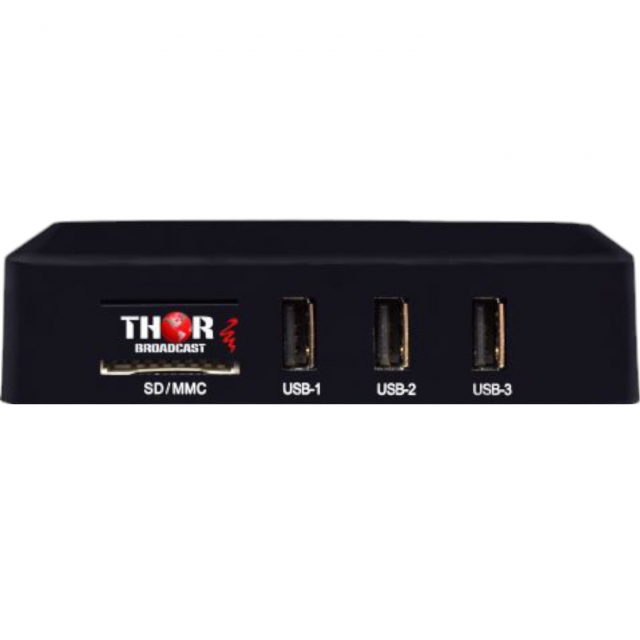

Thor Broadcast H-STB-IP Compact IP Decoder Set Top Box
Brand New
Manufacturer warranty Description
Features:
- Compact Form Factor easily mounts behind displays
- High Definition HDMI output with HDCP support
- Supports both MPEG-2 and MPEG-4/H.264 Codecs
- Compatible with both Unicast and Multicast Transport Streams
- Supports up to 250 displays on a single subnet
Internet Protocol transport of video is becoming more and more common. It is simple now days to encode high definition video into an IP stream that can be carried over any standard Ethernet network equipment. These IP Set Top Boxes are designed to make remote display of network content simple. These units can accept any standard IP network stream and decode it to HDMI. The units support both MPEG-2 and MPEG-4/H.264 codecs, and are compatible with both multicast and unicast streams. These are low cost IP decoders designed for large rollouts with many displays. As many as 250 decoders can be used on a single closed network to display IP content. Contact Thor today for help designing your IP content distrubution system.

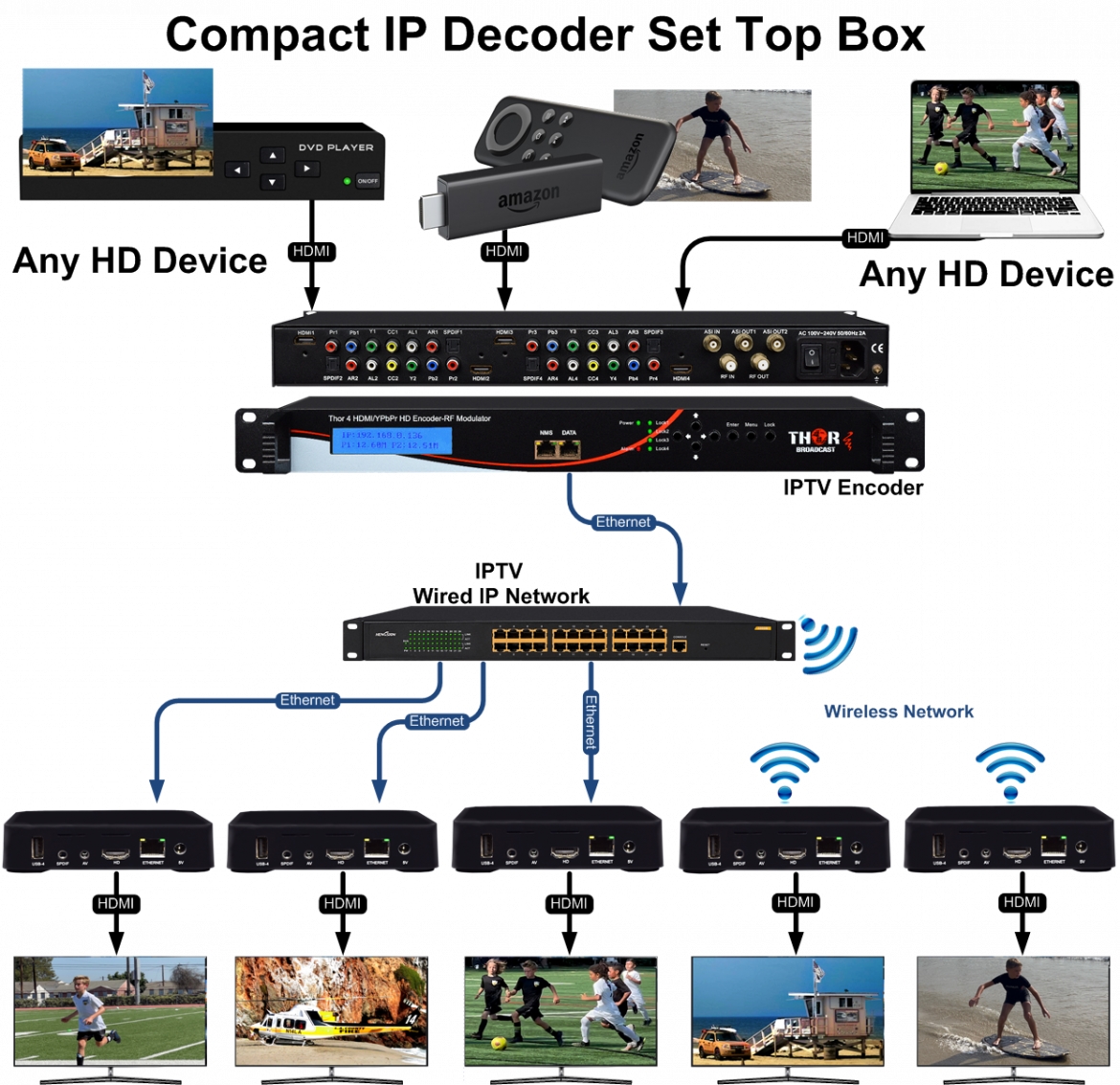

Diagram
Technical details
- Inputs 1 x Ethernet 10/100 BaseT via RJ-45 shielded connector
- Power 5V DC at 1.5A via external power supply Less than 8W typical usage (external supply input voltage 100-240V AC 50-60Hz 3A max)
- Outputs HDMI 1.3a. with HDCP and CEC 10-way Mini-DI n for Composite video, Component (YPrPb) , RgB, S-Video and analog audio. S/PDIF (optical) . 2x USB2.0. RS232 serial connector
- Memory 128MB Flash, 256MB RAM
- Operating Temperature 0°C (32°F) to 40°C (104°F)
- Security Wide selection of DRM and Conditional Access support
- Storage Humidity 5% to 95% RH (non-condensing)
- Audio Analog stereo audio out. Stereo and Dolby 5.1 surround via S-PDIF and HDMI. Dolby Digital+ pass through to external decoder
- Operating Environment ETS 300-019-1-3 Class 3.1
- Video Resolutions Up to 720p and 1080i. Displays up to 1080p
- Codecs MPEg-2 MP atHL MPEg-4 pt10 AVC/H.264 HP atL4
- Graphics Resolutions HD graphics up to 1280x720
- Front Panel LED's Power on /IR command received (Red)
- EMC Conformance FCC Part 15 class B. 2004/108/EC E n55022
- Safety Approvals CAn/ CSA-C22.2 no. 60950-1-03 En60950
- Size and Weight 140mm x 114mm x 40mm. 320g (excluding accessories and packaging)
