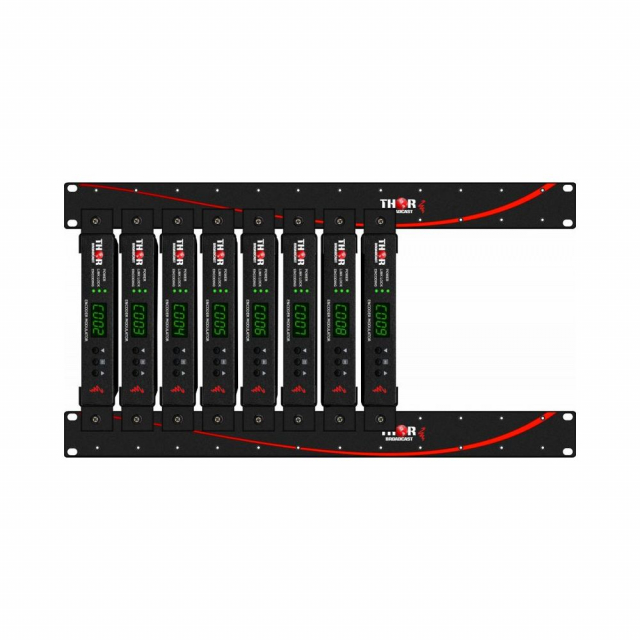

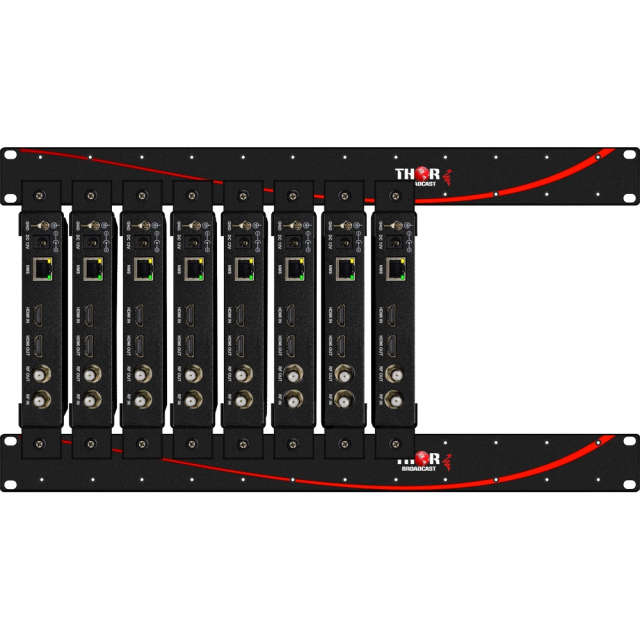

Thor Broadcast, H-Petit-8CH-RM, Petit HDMI RF Modulator Chassis System, 8 Units
Features:
- HDMI Input - HDCP compliant ( works with any HDMI device )
- 10/100 Ethernet NMS port for control, setup, and monitoring
- RF output could be set to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
- RF output power is +24dbmv; enough for distributing HDTV video to 100's TV over the existing coax cable network
- RF power could be controlled over the network via NMS GUI (Proprietary)
- MPEG2 video encoding
- AC3 Audio encoding
- Video bit rate 19.3Mbps
- Supports any CATV RF agile channels form 57-1000Mhz, channels 2 -145,
- Supports output resolutions up to 1080p
- Easy to set up via NMS.
- Small size and lightweight
- Includes wall-mount type rack ears
- Install multiple units onto your TV system
The most unique and cost-effective Networked Digital HDMI RF modulator. Designed to allow any HDMI source like an STB, satellite receiver, HDMI camera, DVD player, Computer, and a ROKU device.You can convert to any RF TV channel of your choice.
When you order a Thor Chassis System with any amount of modulators, you will get the horizontal rack bars, and enough rack ears for the amount of units purchased in your set. You just need to attached the horizontal bars to your 1RU Rack, followed by adding the rack ears to each Petit, and then using screws to fasten the Petit's into the horizontal bars. As with all of Thor Broadcast units, we will gladly handle presetting the units if you so wish, so once you add the units into the rack, plug in the power supplies, HDMI, and RF cables, you'll be ready to launch your RF system in no time.
This Thor Modulator is an all-in-one device integrating HD MPEG2 encoding with AC3 Dolby Audio with an internal digital modulator. Converts HD audio/video signals from any device into DVB-C/ DVB-T/ ATSC/ ISDB-T RF output.The unit supports any HD source with the following video resolutions: 720p, 1080i, 1080p
Simply connect to any PC and control the unit via Thor Broadcast's proprietary GUI which has been touted as being the best on the market.
This unit is plug and play and has exceptional quality for a very low price to help anyone with any budget create their very own RF channel which can be viewed on thousands of televisions simultaneously.
