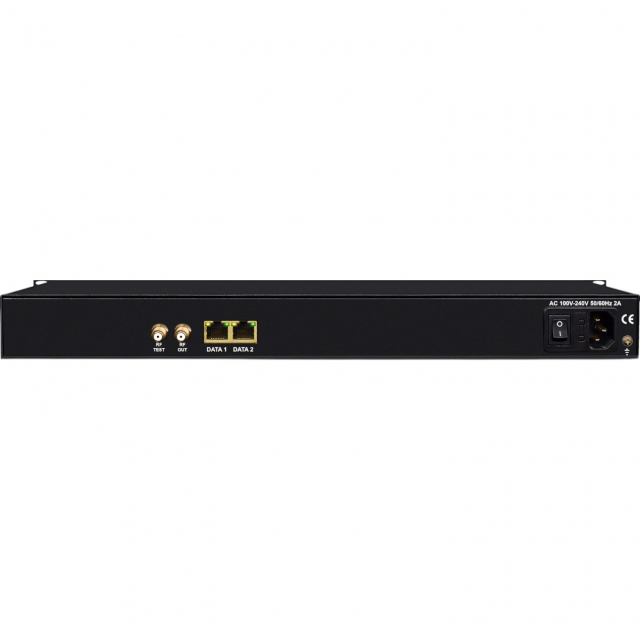

Thor Broadcast H-IP-32RF IP to RF Modulator

Features:

• OSD (Logo and Caption) insertion, CC/Subtitle/Teletext
• Program info modifies, multiple audio selection options
• 2 GE ports (max 64 IP input over MPTS/SPTS) , Max 840Mbps for each GE input
• HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
• Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC
• 32 non-adjacent or adjacent carriers output within 400MHz
• Web-based Network management

H-IP-32RF is an Analog NSTC /PAL analog modulator with IPTV input, works as s Digital IPTV streams to 32 analog channel modulator-gateway, it has two GB Ethernet ports for content IPTV SMPTS / MPTS TS's input that will convert up to 32 programs to standard NTSC or PAL or SECAM modulated channels. Each port can handle up to 840 Mbps or 64 IP programs. H-IP-32RF supports H.265 HEVC, H.264, and MPEG2 transport stream encoded formats. The output is 32 programs on adjacent or non-adjacent carriers within a 400 MHz bandwidth between 47 and 862 MHz. It works as an IPTV decoder demodulator integrated with an analog modulator.

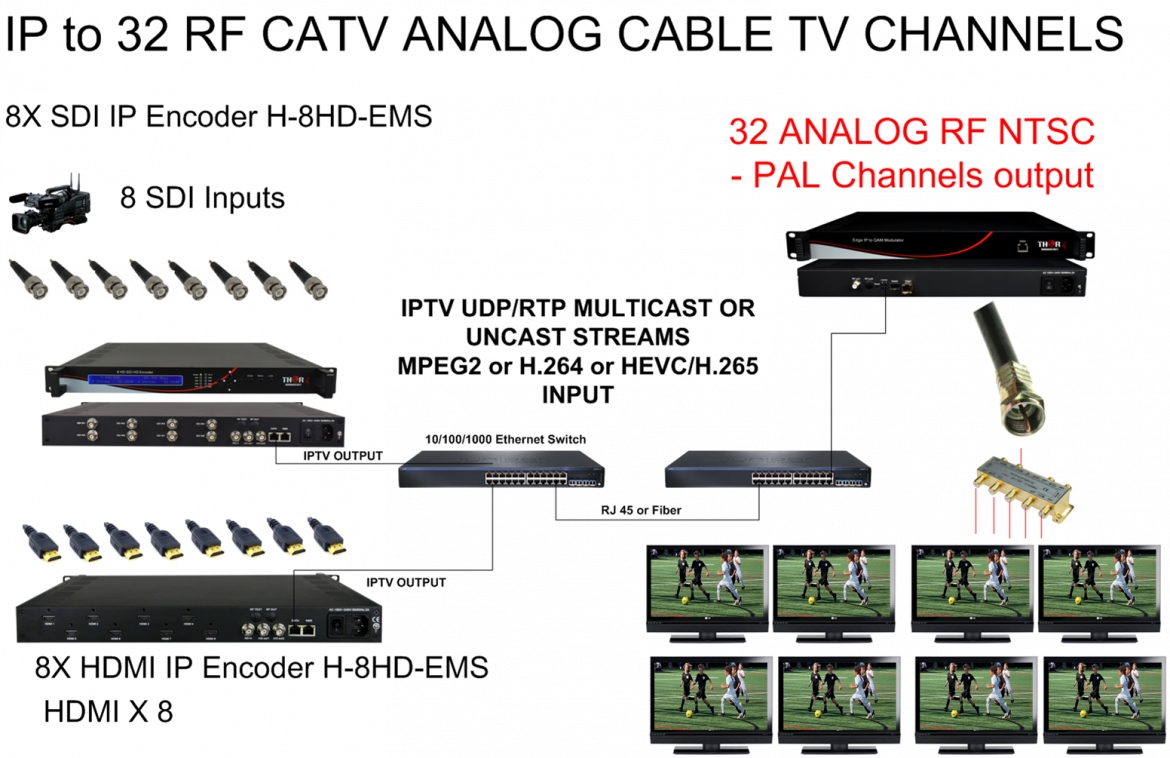

Diagram
