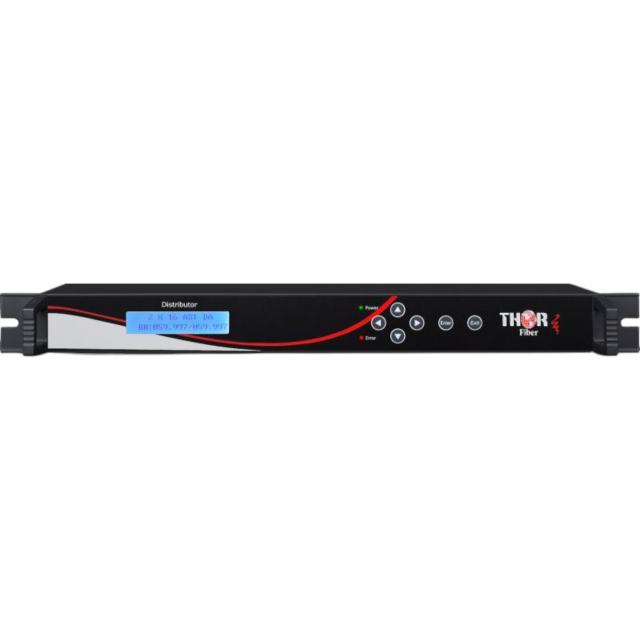

Thor Broadcast H-ASI-AMP 1x16 DVB-ASI Distribution Amplifier
Brand New
Manufacturer warranty Description
Thor Broadcast, H-ASI-AMP, Broadcast 1x16 DVB-ASI Distribution Amplifier with PID Modification
Features:
- One to sixteen Re-clocked and buffered output amplifier
- Very Low jitter due to signal reclocking
- LED indicator every ASI outputs work state
- Conforms to ASI Standard, compatible with SDI Video signal.
The H-ASI-AMP is a signal distribution amplifier for ASI or SDI signals. We built an ASI distribution amplifier unit with 2 to 16 outputs. The units accepts ASI and SDI signals at any bitrate. A key feature of H-ASI-AMP is that the outputs are reclocked, this resolves any issues with signal jitter and provides a clean output. This not only improves the quality of the incoming signal, it allows for much longer cable runs from the outputs. The H-ASI-AMP is a perfect solution for distribution of transport stream signals from devices such as encoders or servers. With a distribution amp such as this the output signal from an ASI multiplexer can be amplified for distribution to many different devices.

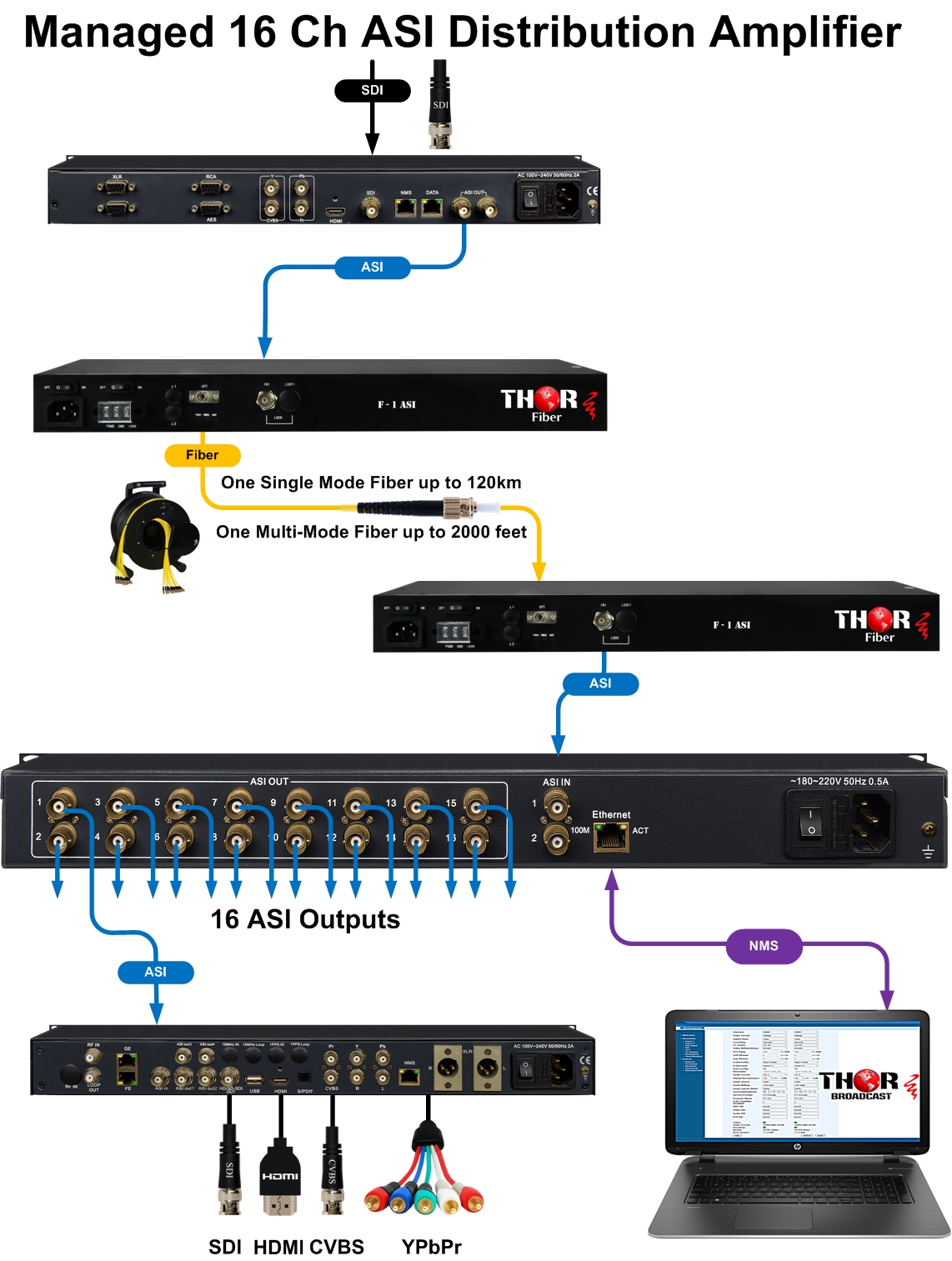

Diagram
Technical details
- Weight 3.5kg
- Dimensions 318mm ( L) X 483mm (W) X 44mm (H) (1RU)
- Power Supply AC 110-220V 50/60Hz
- Power Consumption 20W
- Operating Temperature -10-50°C
- Storage Temperature -10-75°C

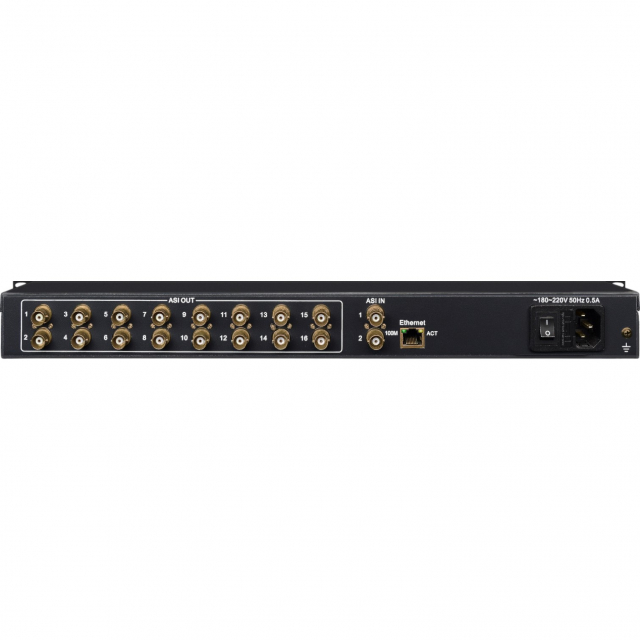

- Output Connector 8 (ASI5108) or 16 (ASI5116) ASI Outputs, BNC (75) According with EN50083-9 ASI Connector standard, SMPTE259M standard, SDI Video signal
- Input Connector 2x ASI input, BNC (75) According with EN50083-9 ASI Connector SMPTE259M standard, SDI Video signal Reflect impedance: <15dB at270MHz
- Output Level 800mV±10%
- Reflect impedance <15dB at270MHz
- Lower residual jitter 180PSpp at270MHz Equalizer
- Re-clocked 130pbs
