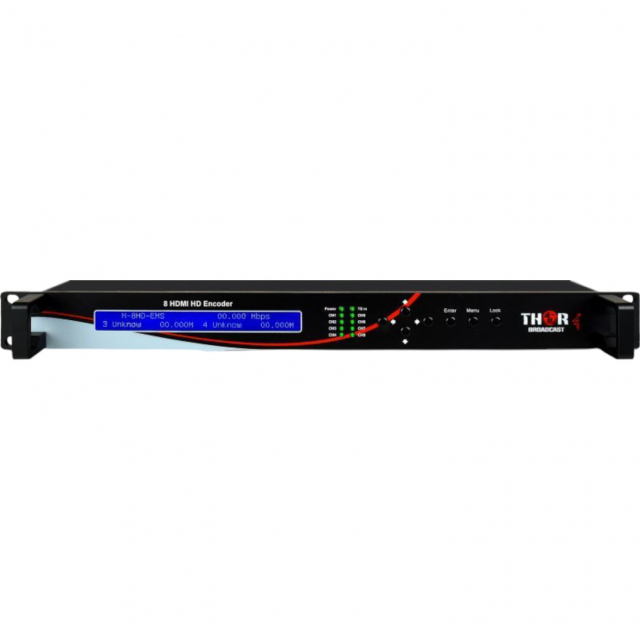

Thor Broadcast H-8HD-EMH 8-Channels HDMI Multiplexer and IPTV Server

Thor Broadcast, H-8HD-EMH, 8-Channels HDMI Encoder Multiplexer and IPTV Server

Features:

• Real Time H.264 Hardware Encoder with 8 HDMI Inputs
• Independent control for encoding parameters on each channel
• Provides all programs as MPTS outputs on both ASI and IP
• Provides single program IP streams as 8 SPTS's IP Output over UPD/RT/RTSP

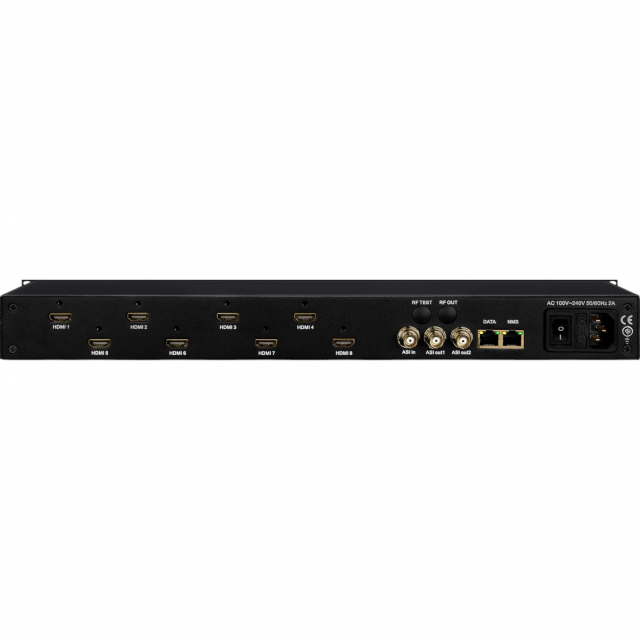

• Includes ASI input for multiplexing an additional ASI program

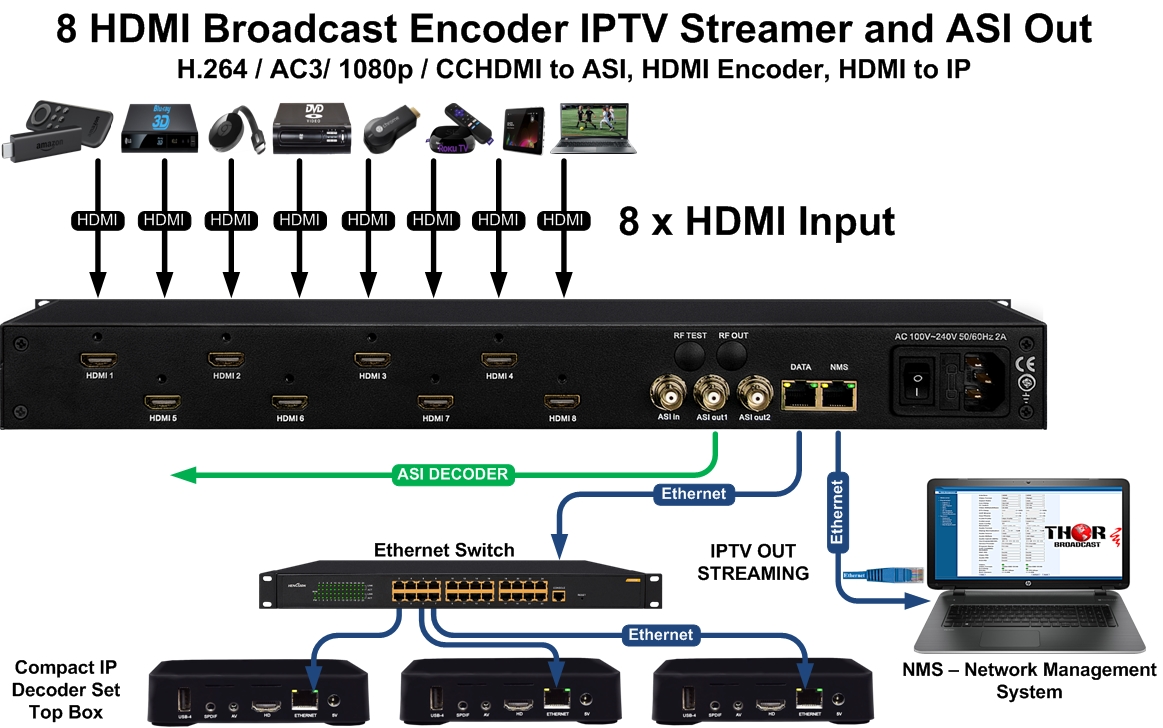

This is an 8 channel encoder for converting 8 channels off HDMI content input to ASI and IP outputs. Each of the 8 encoders can be independently configured for bit rate and PID management. Encoding is based on high-level H.264 codec and bit rates up to 19 Mbps per channel are supported. This platform is ideal for reducing the rack space required for HD program encoding for content source origination and distribution. Ideally suited for CATV headend program aggregation or high-end CCTV systems. All encoded programs are multiplexed to multi-program transport stream (MPTS) outputs on both ASI and IP. Additionally, single program transport stream (SPTS) outputs are provided for all inputs on the IP network output. This unit also provides a one channel ASI input that can multiplex 1 additional program to the outputs from an ASI source. This highly flexible system dramatically lowers the cost per channel for real-time HD video encoding.
