Thor Broadcast H-16RCA-RF-AMOD 16 Ch Analog Agile Modulator

Features:

• SAW filtering for maintenance free adjacent channel configuration
• High RF CATV RF output power
• CATV RF 45-870Mzh Spectrum
• Universal worldwide use supports NTSC, PAL, or SECAM output
• Double I.F loop for superior in-band C/N
• 16 Agile channel output
• Fewer cables and connectors but greater reliability
• Rack-mountable 1RU space
• Front panel accessible level controls for easy set-up and adjustment
• NMS RJ45 port for network access and management system

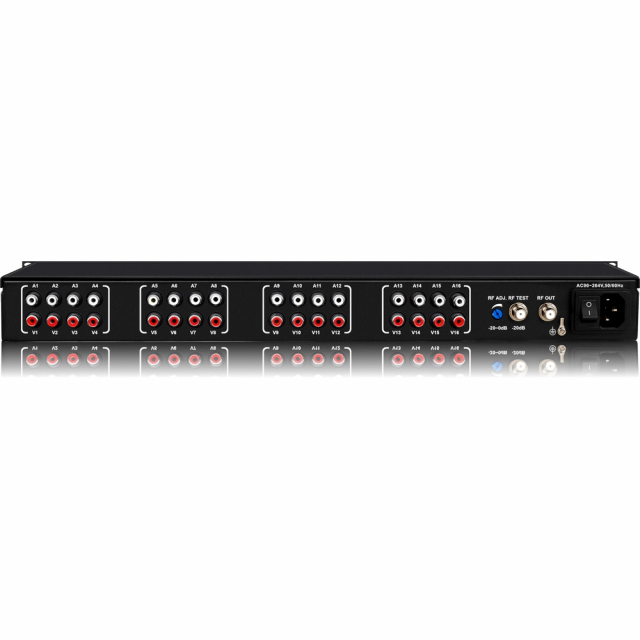

While NTSC is quickly becoming legacy equipment, there is still a need for head ends requiring Analog modulation. This unit simplifies the installation because of the high density capacity of 16 independent inputs.The Inputs are in CVBS RCA baseband video / audio inputs. Analog CVBS inputs can be connected from items like Security Cameras, DVD/VCR player, Set-Top Box, Old Video players, or older gaming systems like Playstation, Nintendo 64.The High Power RF Output allows for video distribution to many TV's on the same coax network without RF amplifiers.Common applications used are video security monitoring, Hotels, Motels, Education, Private anonymous channels, music channels, radio channels, coax network testing.It is SAW filtered and microprocessor controlled with an output capability of 860MHz. Setup and tuning is easy and simple via the front panel. The unit offers high performance, low cost comparable to digital modulators and compact design for system operators. Also features an RJ45 port for ethernet connection to the NMS management system which allows you to manage, remote access, and change settings.
