Thor Broadcast, F-RF-Tx-MN-2mW, Fiber CATV RF Over Fiber Mini Transmitter and Mini Receiver Kit

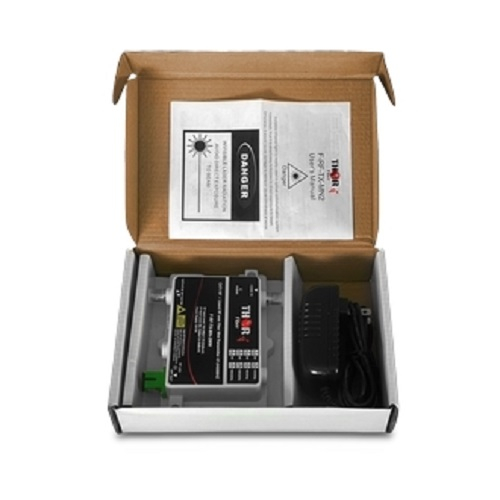

F-RF-Tx-MN-2mWIncludes Only:

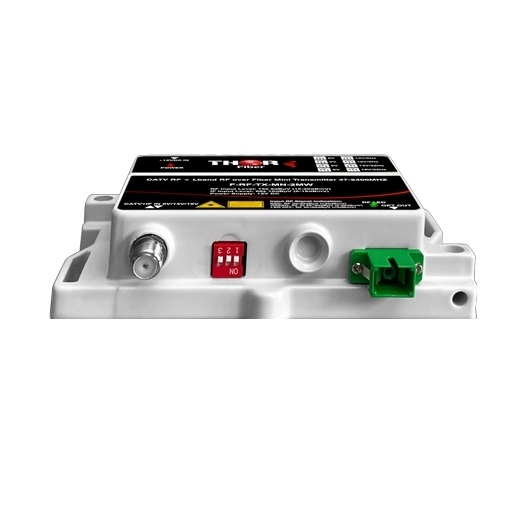

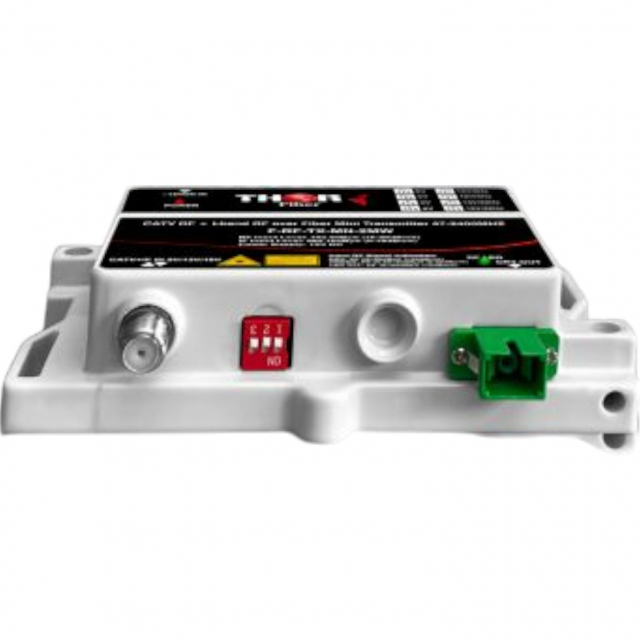

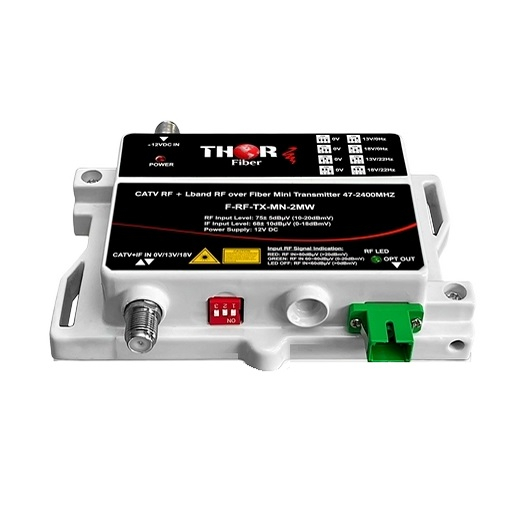

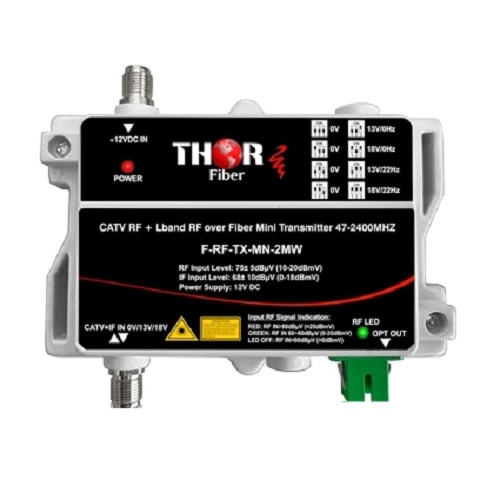

- Transmitter

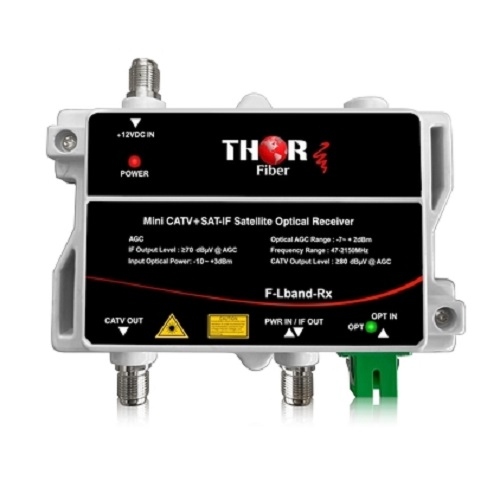

- Receiver
- Power Supplies
Features:
- 45 -1000MHz working bandwidth
- High-performance DFB coaxial laser that has a great linking performance and stable output
- Advanced CPU processing and an auto-monitoring system to supervise the operational status which leads to a longer life of the laser
- Low power loss design(less than 8W) which creates a very low operational temperature
Important Know: It is very important to interface unit with SC/APC - Angle Polished Connector to avoid any light reflections. If your fiber is terminated with the SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.
The transmission distance of optical signals depends on the Optical TX output power and the receiving power range of the optical receiver. For example, the transmitting power for this unit is about +2 dBm, and the receiving power of the incoming signal and RX sensitivity for the F-RF-RX-NM2 is about -5 dBm, which creates an optical budget of 7 dB. Therefore, the maximum allowable loss in the optical fiber or network is 7 dB. The loss in fiber on a 1310 nm optical signal is about 0.35 dB per kilometer. Additionally, there is always some loss with interconnections on the optical connectors or optical patch panels.
