Features:
- Designed for FTTH (Fiber To The Home) Networks
- Excellent linearity and flatness
- Converts Optical signal to electrical RF 45-1000Mhz
- Analog NTSC/PAL, Digital QAM, ATSC, DVB-T,
- 20dBmV RF output power at Optical Input:-0 dBm

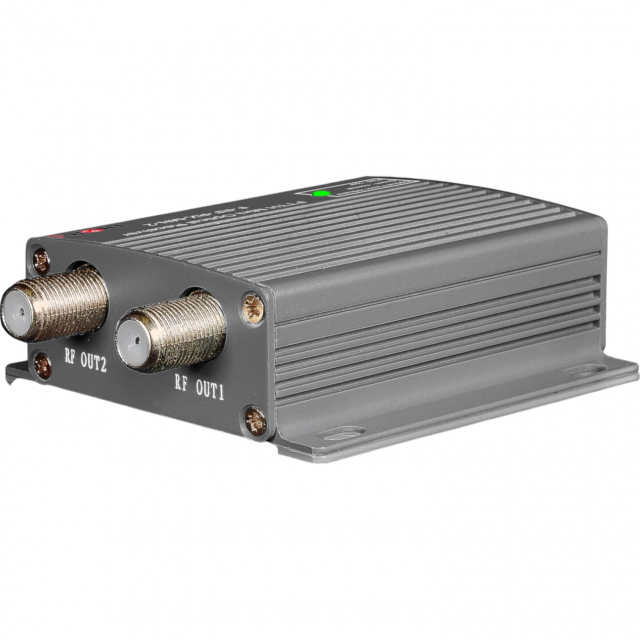

- Dual Coaxial output for easy deployment for multiple devices
- Wide range of optical input power
- Single-mode fiber
- Ultra-low noise technology
- Smaller size and easy to install
- Red-LED for power indication
- Color-LED for optical power indication
- Built-in filter
Important Note: It is very important to interface unit with SC/APC-Angle Polished Connector to avoid any light reflections. If your fiber is terminated with the SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.

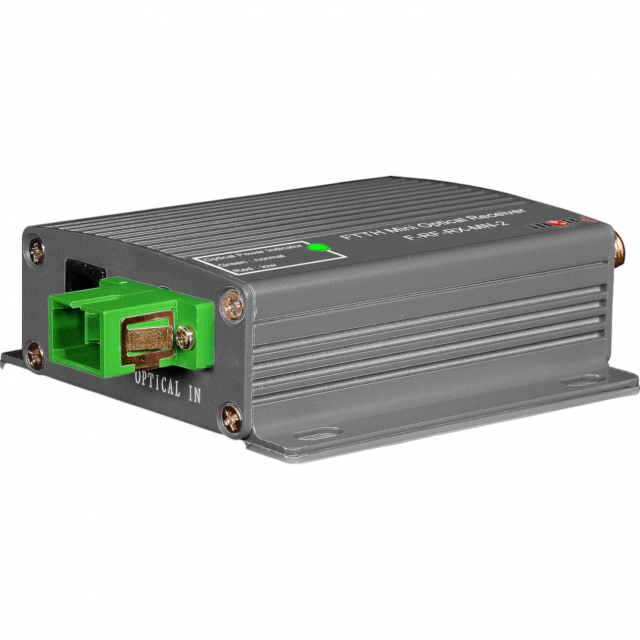

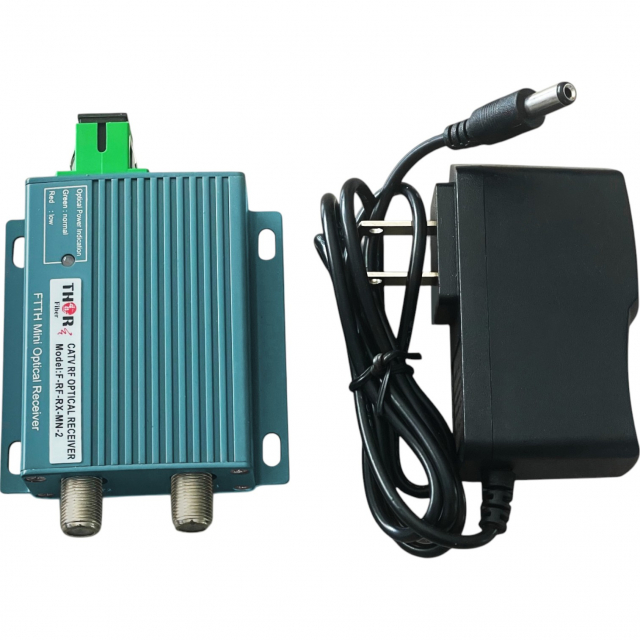

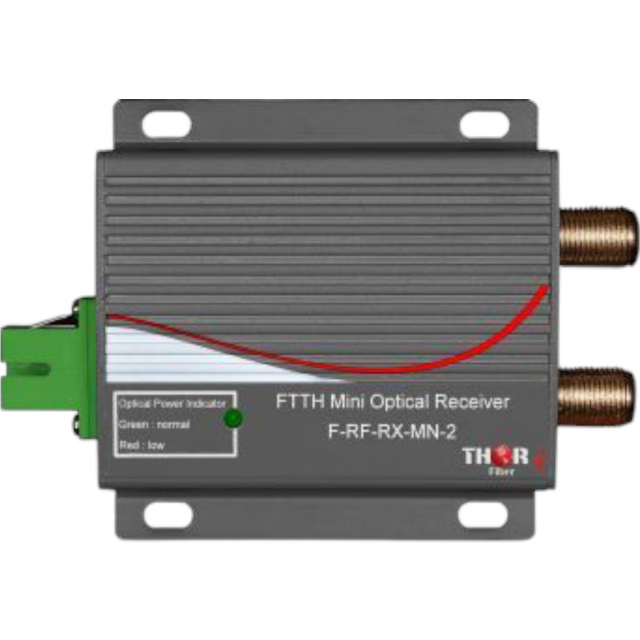

The Thor Fiber Mini FTTH optical receiver F-RF-RFMN-2 is specifically designed for FTTH networks. These ultra compact Fiber-To-The-Home optical receivers were designed and engineered to ensure compatibility for any type of FTTH network structure in mind. It has small compact housing, mini-internal circuit structure that still remains a high performance, low cost receiver that is economical for any project. It can be used for any application of HFC network fiber to the home (FTTH) because of it's form factor and output power. These units have a wide range for receiving optical power, high output level and low power consumption. They are the ideal pieces for any optical fiber network which can provide a highly reliable, digital video frequency and data bi-directional transmission for the HFC network. It could be use to send CATV RF point to point or point to multipoint.
