Televes 593981 H30D+ Sprectrum Analyzer with ATSC 1.0

Televes, 593981, H30D+ Sprectrum Analyzer with ATSC 1.0 and DOCSIS 3.1

Features:

• Professional RF signal analyzer: decoding and display of video and audio parameters of received ATSC 1.0 and QAM signals
• Multiscreen system with touch control: display the meter screen on a mobile device, and control the meter by touch gestures and buttons
• Wi-Fi and Bluetooth connectivity
• Real-time digital processing
• Light-weight handheld meter
• User-friendly interface
• DOCSIS 3.1
• With Wi-Fi / IPTV analyzers and HEVC display as options
• Automatic parameter detection: the H30+ automatically detects signal type (A/D) and parameters to be measured (constellation, symbol rate, etc)
• All measurements are carried out by pressing a single button equipped with Pass/Fail indicators to reduce installation errors

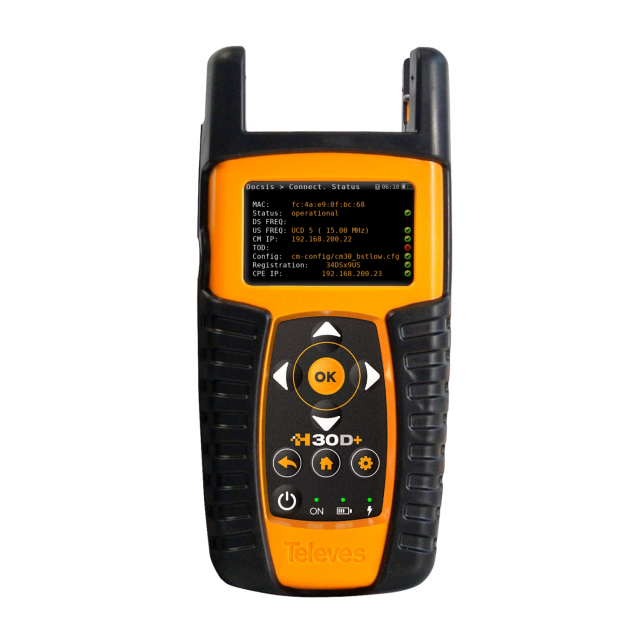

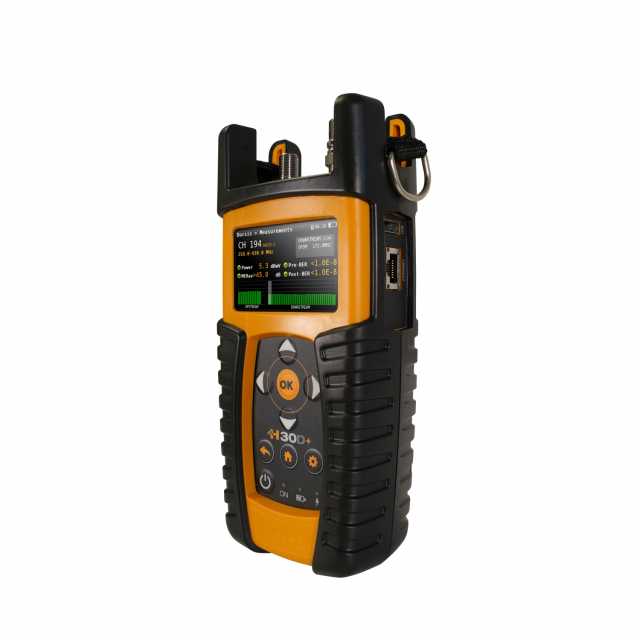

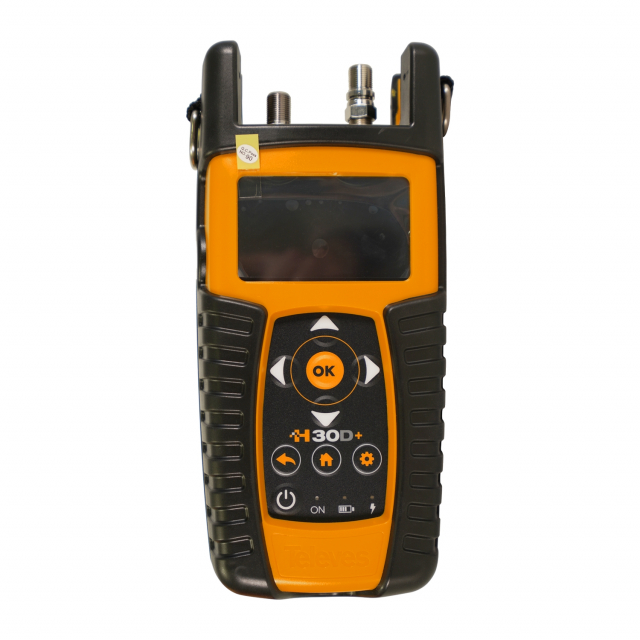

The H30D+ is a lightweight, compact, and robust equipment that includes a full range of tools and functionalities to successfully perform installation, maintenance, and troubleshooting tasks in both analog networks and digital networks with ATSC, and QAM channels. It stands out for incorporating advanced DOCSIS 3.1 measurements, automatic monitoring of the desired channel, double-check connectivity, and information about a QAM channel program content, among other powerful functions.

Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on their mobile device (Android, iOS, or PC). Wi-Fi and Bluetooth connectivity will let you work with all the conveniences of a wireless connection. In addition, to make the use of the smartphone even more natural, a universal bracelet is provided for devices up to 6".

Just as the rest of the meters are fully designed and manufactured by Televes Corporation, H30D+ takes advantage of the digital processing technology and provides the user with a speed and mathematical accuracy equivalent to that of laboratory equipment.

Multiscreen and Remote Control

Controllable from any Android or iOS device or a PC with H30Suite

The H30Evolution multiscreen system allows you to display the meter's screen on your smartphone or tablet to wirelessly control the meter or just for the sake of working with a larger screen. The installer may wirelessly access the equipment at any time from anywhere in the installation (depending on the local network connection range), with the convenience of always using his/her device. Simply install the H30Suite App (ref. 100016) on your device and connect it to the Wi-Fi network generated by the meter (AP mode).

Wi-Fi and Bluetooth Connectivity

Wireless access to the meter

Equipped with 2.4/5 GHz Wi-Fi and Bluetooth, the equipment allows secure access through an Android or iOS device or a PC. The web management application H30Suite (ref. 100016) may be used to check and export stored measurements, access quality profiles, meter settings cloning, and meter registration through a friendlier interface or real-time consultation of the user manual.

Intuitive User Interface

Reducing the learning curve

Easy to use one-level menu structure with very intuitive functions for increased usability, faster operation and maximum productivity. No function requires more than three successive button pushes to achieve the desired operation. It doesn't get any easier than this, you will fly through the functions without ever reading the user manual.

Comprehensive Functionality

Pass/Fail indicators

A full range of functionalities such as Single-channel measurements, Constellation diagrams, Spectrum analyzers, Service identification, Data logs, Channel plan auto-learning, and more.

Accuracy and Speed

Real-time digital processing

Designed to instantly obtain all the information about the signal in real-time, it is a true milestone in fieldwork. H30Evolution provides the required accuracy and speed to detect minor transient radiation, or spurious signals that could affect the system during signal reception.

100% Automatic

Signal detection

Fully automatic, it detects the parameters of different modulations with no need for configuration. H30Evolution will detect at once whether the input signal is analog or digital, and will determine its constellation, symbol rate, and other modulation parameters, providing an instant reading without any user intervention.

Rugged and Light-Weigh

Total reliability

A unique dual injected rubber and polycarbonate plastic housing ensures the best protection and durability. Weighing only one pound, the H30D+ is comfortable to carry and use. You can put it in your pocket or hang it from its sturdy built-in grommets using the provided shoulder strap you will hardly know it's there!

Made in Televes

The H30Evolution is entirely designed by Gsertel, a company within Televes Corporation, where team of experienced and highly qualified telecommunication engineers managed to integrate digital processing in a handheld unit of 1lb of weight. Each H30Evolution includes more than 5,000 components and integrated circuits.

Services and IPTV Analyzer

IPTV and RF services information

Provides demodulation and analysis of IPTV streams (both Unicast and Multicast), and displays both total bitrate and bitrate for each service. The relevant information for each service is SID, VPID, AID, video profile, and bit rate for both audio and video. In addition, this option completes the RF measurements since all this information by service is analyzed as well for this type of signal. For IPTV signals, specific protocol measurements (UDP/RTP) are also analyzed, such as UDP format, Media Loss Rate, and Lost IP frames.

Channel Information

The less the better

Sometimes, taking a glance at one channel is all you need. The advanced H30Evolution single-channel measurement option automatically detects the channel type, displaying the audio and video levels, A/V and C/N for analog signals, and power, C/N, and appropriate quality measures for each type of digital signal. All these measures are taken through one single button; at that point, all indicators will be activated and display the "Pass/Fail" condition based on the thresholds specified by the user. Easy-to-interpret results, even for junior technicians.

System Scan

Monitored installation

Scan each existing analog and digital channel in real-time to determine the overall system frequency response. This function leverages the location-based thresholds to clearly show whether the signal levels meet the cable systems' specifications with green, yellow, and red bars. This feature provides an easy-to-understand, real-time view of the system, including the BER and MER values of the selected channel.

HEVC Display

This functionality supports HEVC H. 265 compression format and allows the display of video signals with a maximum Full HD resolution (1920 x 1080). Information can be displayed both on the meter screen or on the mobile device (multiscreen mode) as long as your hardware is H. 265 compatible (usually a smartphone, tablet or PC).

LT Monitoring

Automatic monitoring of the desired channel

The H30+ Long-Term Monitoring Function allows the automatic monitoring of the selected channel. Once the time interval between two consecutive measurements has been selected, the H30+ will automatically take all the measurements of the channel selected and store them in memory.

Tilt Function

Always in balance

Get a quick view of your signal level differences over a specified frequency range, so you can apply attenuation or equalization to adjust them. Take the meter to your farthest extents and see at a glance what carriers' power levels are out by their red, yellow, and green colors. Any number between 2-12 analog, digital, or DOCSIS channels can be measured using the tilt measurement, and you can even select which carriers are your reference points to determine the tilt between any of the channels included in the measurement.

Voltmeter & Hum

Cover all your bases

Don't want to worry about bringing a separate volt meter with you? No problem, the H30+ will do that too. The H30+ will also give you a Hum percentage to help you diagnose those ground and power interference problems that may result from a defective power supply or faulty/overloaded power inserters.

Reverse Path Ingress Scan

Maximum, average, peak

Help identify reverse path problems before your customers are affected. Poorly shielded coaxial cable and faulty terminations are important sources of ingress noise, which can easily add up in the return due to the large number of subscriber-generated signals that are sent back to the headend. The combined and amplified interference is often responsible for service disruption, so having a good reverse path ingress scan tool is always a must.

IP Speed Test

Double-check connectivity

Need a quick check of your data network at the headend or at a customer's unit? The H30+'s IP Speed Test allows you to check your basic network performance parameters, so you don't need to get your laptop out. This includes your upload and download speed, as well as your ping times and lost packet statistics.

Service Info

Study MPEG details

Do you want to know what program content is on that QAM channel? The H30+'s Service Info feature will tell you. In addition to the short description of the service, you will get the important parameters including the NIT, PAT, and TSID for the channel, and for the individual service, you will get the SID and the PID, encode type, resolution, and bitrate for both the audio and video, all of which greatly help when troubleshooting your encoder configuration.

Advanced DOCSIS 3.1 Measurements

Without missing a detail

This function displays all the measurements for the DOCSIS OFDM channel. In addition to MER and level measurements, it also displays all the PLC and NCP measurements.
