SPY 673 Holiday Detector Wet Sponge 67.5V

673 Includes Only:

• 1 - 8 ft. Power Cord
• 1 - 14.5" Sponge Wand
• 1 - 12 ft. Wand Signal Cord
• 1 - 3 ft. Ground Cable
• 1 - Operating Instruction
• 1 - Certificate of Calibration traceable to NIST
• 1 - Carrying/Shipping Case

Features:

• Ergonomic, Balanced, Lightweight Handheld Design.
• Rugged, Durable Construction
• 67.5 Volt DC-Sensitive and Accurate
• Quick Change Battery Compartment
• Wide Range of Quick Change Accessories

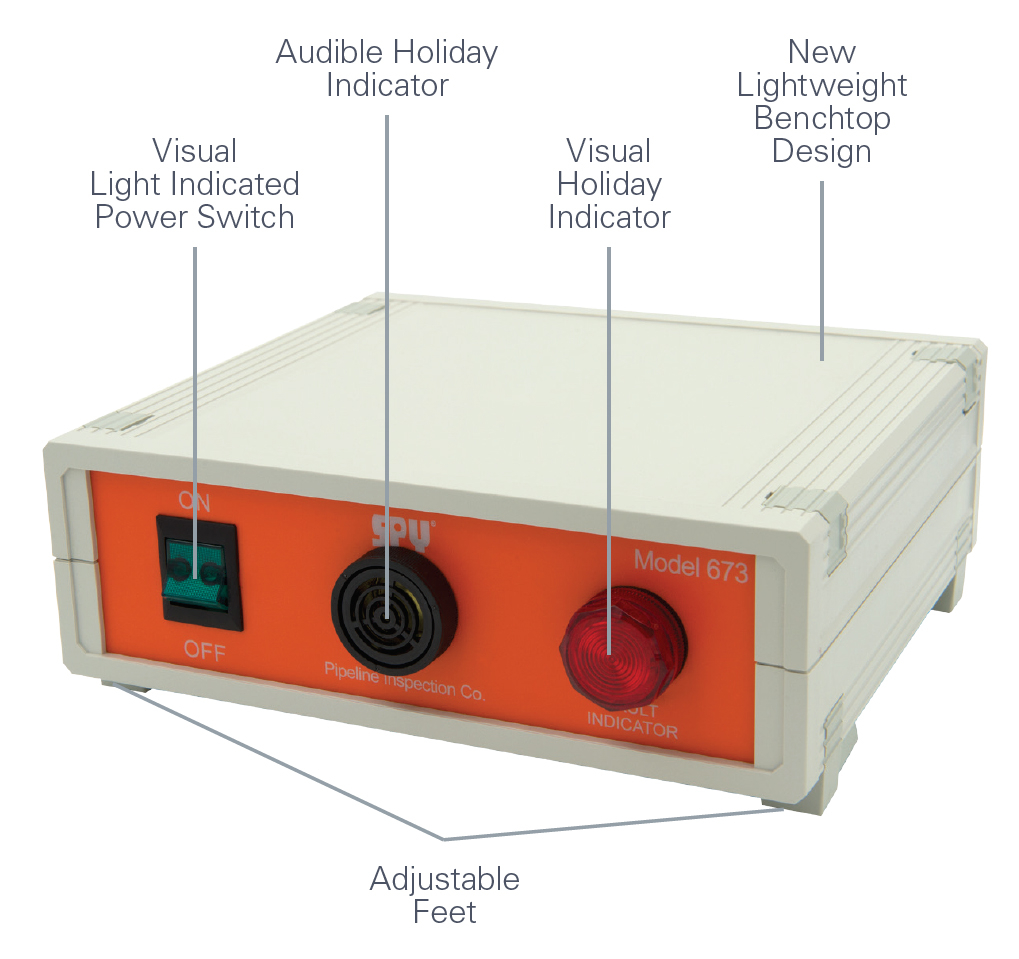

The Model 673 Wet Sponge Holiday Detector for Plant or Stationary Operations is highly sensitive and accurate. A uniform coating of only one mil of paint or other non-conductive material over a metal surface is sufficient to repel a small current flow. If a pin-hole holiday is encountered, moisture from the sponge will seep into the hole and create a free path for electrical flow, activating the signal horn.

For coatings 1 to 10 mils thick, ordinary tap water can be used to wet the sponge. For coatings of 11 to 20 mils thickness, a non-sudsing wetting agent (such as Kodak Photo-flow R®) is recommended to increase ability of the moisture to swiftly make its way through the pin-holes.

Convenient output plugs on rear of unit allow use of customer supplied external signal systems such as lamps, Klaxon horns, recorders, etc. Output from these plugs is 120 volt A.C.
