Center Hole 30 Ton 2-1/2" Stroke Cylinder
Center Hole 30 Ton 2-1/2" Stroke Cylinder
SPX Power Team
Bestseller
Center Hole 30 Ton 2-1/2" Stroke Cylinder
Center Hole 30 Ton 2-1/2" Stroke Cylinder

SPX Power Team RH302 Center Hole 30 Ton 2-1/2" Stroke Cylinder

Part #:
RH302
Model #:
RH Series
Condition:
Brand New
$1,768.00 /Each
$2,150.00 You save $382.00 18%
Free shipping
$1,768.00 /Each
$2,150.00 You save $382.00 18%

Notification

This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.

Manufacturer warranty

Description

$1,768.00 /Each
$2,150.00 You save $382.00 18%
Free shipping

Technical details

Main features
  • Load Capacity (Ton) x Stroke Size (in) 30 x 2-1/2
  • Retracted Height (in. [mm]) 6.25 [158,8]
  • Extended Height (in. [mm]) 8.75 [222,3]
  • Outside Diameter (in. [mm]) 4.75 [120,7]
  • Collar Thread (in.) 4-3/4-12
  • Piston Collar Thread Length (in. [mm]) 1.50 [38,1]
  • Base to Port (in. [mm]) 1.16 [29,4]
  • Piston Rod Diameter (in. [mm]) 3.25 [82,6]
  • Cylinder Capacity (tons) 30
  • Cylinder Effective Area (sq. in. [cm 2 ] 6.34 [40,9]
  • Internal Pressure at Capacity (psi) 9457
  • Oil Capacity (cu. in. [cm 3 ]) 15.85 [260,0]
  • Stroke (in. [mm]) 2.50 [63,5]
  • Tons at 10,000 psi [Metric Tons at 700 bar] 31.70 [28,8]
  • Weight (lbs. [kg]) 25.60 [11,6]

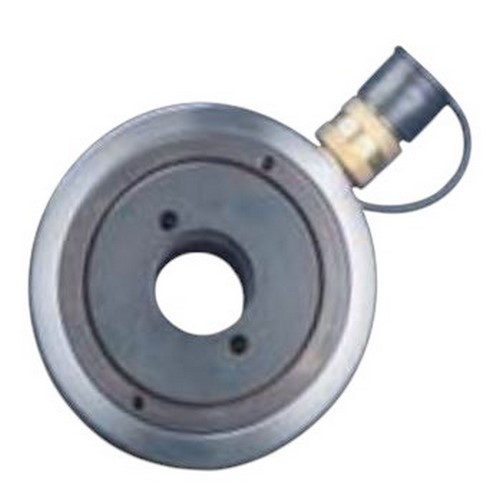

  • Center Hole Diameter (in. [mm]) 1.30 [32,9]
  • Insert Thread Size (in.) 2-3/4-12
  • Mounting Holes and Bolt Circle (in. [mm]) 7/16-20 x 3-5/8
