SPX Power Team
Bestseller
55 Ton Capacity 2" Stroke Single Acting Cylinder

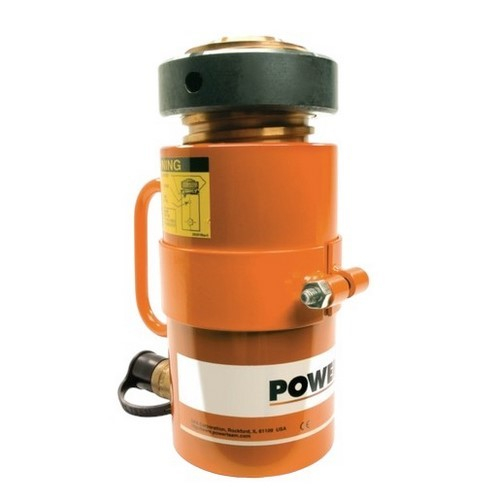

SPX Power Team R552L 55 Ton Capacity 2" Stroke Single Acting Cylinder

Part #:
R552L
Model #:
R Series
Condition:
Brand New
$1,820.00 /Each
$2,206.30 You save $386.30 18%
Free shipping
Typically In Stock
Check availability
$1,820.00 /Each
$2,206.30 You save $386.30 18%
Manufacturer warranty

Description

SPX Power Team, R552L, 55 Ton Capacity 2" Stroke Single Acting Cylinder with Locking Collar

Features:

  • Supports lifted load for extended periods of time with hydraulic pressure released.
  • Visible indicator band alerts when stroke limit is reached; overflow port ("weep hole") stroke limiter prevents the piston from being overextended.
  • All cylinders feature coated pistons to resist corrosion and abrasion.
$1,820.00 /Each
$2,206.30 You save $386.30 18%
Free shipping
Typically In Stock
Check availability

Technical details

Main features
  • Version Cylinder with Locking Collar
  • Retracted Height (in. [mm]) 6.38 [161,9]
  • Extended Height (in. [mm]) 8.38 [212,7]
  • Outside Diameter (in. [mm]) 4.94 [125,4]
  • Base to Port (in. [mm]) 1.00 [25,4]
  • Piston Rod Diameter (in. [mm]) 3.75 [95,3]
  • Rod Protrusion (in. [mm]) 0.13 [3,2]
  • Bore Diameter (in. [mm]) 3.75 [95,3]
  • Cylinder Capacity (tons) 55
  • Cylinder Effective Area (sq. in. [cm 2 ] 11.04 [71,2]
  • Internal Pressure at Capacity (psi) 9964
  • Oil Capacity (cu. in. [cm 3 ]) 22.10 [362,0]
  • Stroke (in. [mm]) 2.00 [50,8]
  • Tons at 10,000 psi [Metric Tons at 700 bar] 55.20 [50,1]
  • Weight (lbs. [kg]) 33.70 [15,3]
  • Nut Thickness (in. [mm]) 1.44 [36,5]
