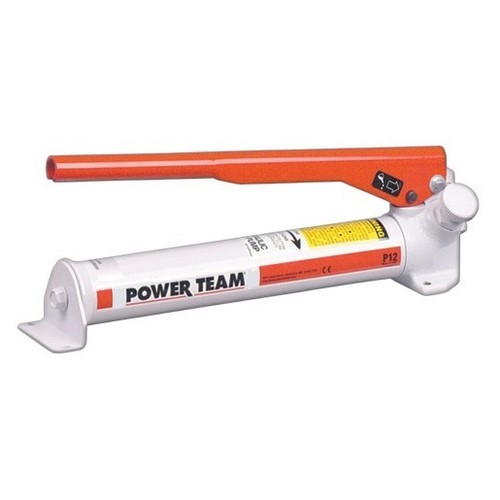

Buy SPX Power Team P12, 1-Speed 0.069 CU In/Stroke Hand Pump - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Volume per Stoke (cu):: Volume per Stoke (cu): 0.069

Features:

All Metal construction, won't burn through in welding environments.
Formed Metal handle provides less flex, and reduces operator fatigue.
The fill cap seal acts as a safety valve preventing over-pressurizing of the reservoir.
The relief valve inboard of the check valve prevents loads from drifting down.
A large valve knob gives added control for slowly metering loads down.

Power Team hand pumps, with the angled fill port, have a built-in "relief valve" protection system. This systemis designed to protect against over-pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

For Use with Cylinder Type

Single-Acting

Speed

1

Handle Effort (lbs. [kg.])

75.0 [34]

Reservoir Oil Capacity (cu. in. [cu. cm.])

12.0 [197]

Reservoir Usable Oil Capacity (cu. in. [cu. cm.])

9.0 [148]

HP Maximum Pressure (psi [bar])

10,000 [700]

HP Volume Per Stroke (cu. In. [cu. cm.])

0.069 [1,1]

Oil Port (in.)

3

Dimensions

dimensions

A (in. [mm.]): 4.00 [102]
B (in. [mm.]): 13.00 [330]
C (in. [mm.]): 2.06 [52]
D (in. [mm.]): 4.00 [102]
E (in. [mm.]): 13.50 [343]
F (in. [mm.]): 3.38 [86]
G (in. [mm.]): 2.19 [56]
H (in. [mm.]): 11.50 [292]
J (deg.) 45
K (in. [mm.]): 0.19 [5]
L (in. [mm.]): 3.38 [86]
M 3
N (in. [mm.]): 1.13 [29]

Weight

5.7 [2,6]

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

For Use with Cylinder Type

Single-Acting

Speed

1

Handle Effort (lbs. [kg.])

75.0 [34]

Reservoir Oil Capacity (cu. in. [cu. cm.])

12.0 [197]

Reservoir Usable Oil Capacity (cu. in. [cu. cm.])

9.0 [148]

HP Maximum Pressure (psi [bar])

10,000 [700]

HP Volume Per Stroke (cu. In. [cu. cm.])

0.069 [1,1]

Oil Port (in.)

3

Dimensions

dimensions

A (in. [mm.]): 4.00 [102]
B (in. [mm.]): 13.00 [330]
C (in. [mm.]): 2.06 [52]
D (in. [mm.]): 4.00 [102]
E (in. [mm.]): 13.50 [343]
F (in. [mm.]): 3.38 [86]
G (in. [mm.]): 2.19 [56]
H (in. [mm.]): 11.50 [292]
J (deg.) 45
K (in. [mm.]): 0.19 [5]
L (in. [mm.]): 3.38 [86]
M 3
N (in. [mm.]): 1.13 [29]

Weight

5.7 [2,6]

Note: Please read description carefully. Do not base your order on the picture presented.
