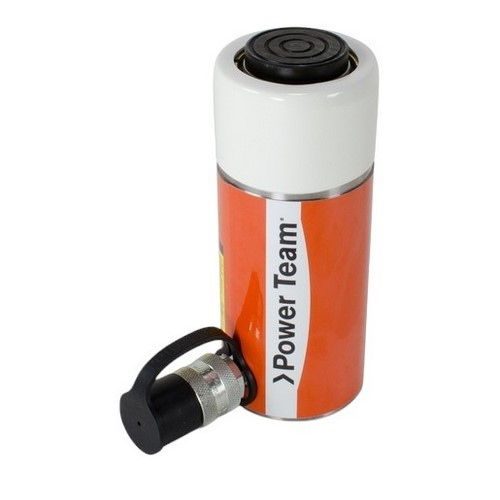

Buy SPX Power Team C102C, 10 Ton 2-1/8" Hydraulic Ram Cylinder

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Load Capacity (Ton) x Stroke Size (in):: Load Capacity (Ton) x Stroke Size (in): 10 x 2-1/8

Features:

Aluminum bronze bearing reduces the wear caused by off-center loads.
Maximum-sized springs speed piston return and increase spring life.
Collar threads are standard on all C-Series models, simplifying fixturing applications.
Removable rubber boots protect collar threads during transport and storage.
Solid steel cylinder body for durability.
Chrome-plated piston rod resists wear and corrosion.
A 3/8" NPTF female half-coupler is standard.
Complies with ANSI / ASME B30.1 Safety Standards.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Retracted Height (in. [mm])	4.75 [122,0]
Extended Height (in. [mm])	6.88 [172,8]
Outside Diameter (in. [mm])	2.25 [57,2]
Collar Thread (in.)	2-1/4
Piston Collar Thread Length (in. [mm])	1.13 [28,6]
Base to Port (in. [mm])	0.75 [19,1]
Piston Rod Diameter (in. [mm])	1.50 [38,1]
Piston Rod Internal Thread and Depth (in.)	1-8 x 0.75 [1-8 x 19,1]
Rod Protrusion (in. [mm])	0.25 [6,4]
Bore Diameter (in. [mm])	1.69 [42,8]
Cylinder Capacity (tons)	10
Cylinder Effective Area (sq. in. [cm²]	2.24 [14,4]
Internal Pressure at Capacity (psi)	8948
Oil Capacity (cu. in. [cm³])	4.80 [79]
Stroke (in. [mm])	2.13 [54,0]
Tons at 10,000 psi [Metric Tons at 700 bar]	11.20 [10,2]
Weight (lbs. [kg])	5.00 [2,3]

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Retracted Height (in. [mm])	4.75 [122,0]
Extended Height (in. [mm])	6.88 [172,8]
Outside Diameter (in. [mm])	2.25 [57,2]
Collar Thread (in.)	2-1/4
Piston Collar Thread Length (in. [mm])	1.13 [28,6]
Base to Port (in. [mm])	0.75 [19,1]
Piston Rod Diameter (in. [mm])	1.50 [38,1]
Piston Rod Internal Thread and Depth (in.)	1-8 x 0.75 [1-8 x 19,1]
Rod Protrusion (in. [mm])	0.25 [6,4]
Bore Diameter (in. [mm])	1.69 [42,8]
Cylinder Capacity (tons)	10
Cylinder Effective Area (sq. in. [cm²]	2.24 [14,4]
Internal Pressure at Capacity (psi)	8948
Oil Capacity (cu. in. [cm³])	4.80 [79]
Stroke (in. [mm])	2.13 [54,0]
Tons at 10,000 psi [Metric Tons at 700 bar]	11.20 [10,2]
Weight (lbs. [kg])	5.00 [2,3]

Note: Please read description carefully. Do not base your order on the picture presented.
