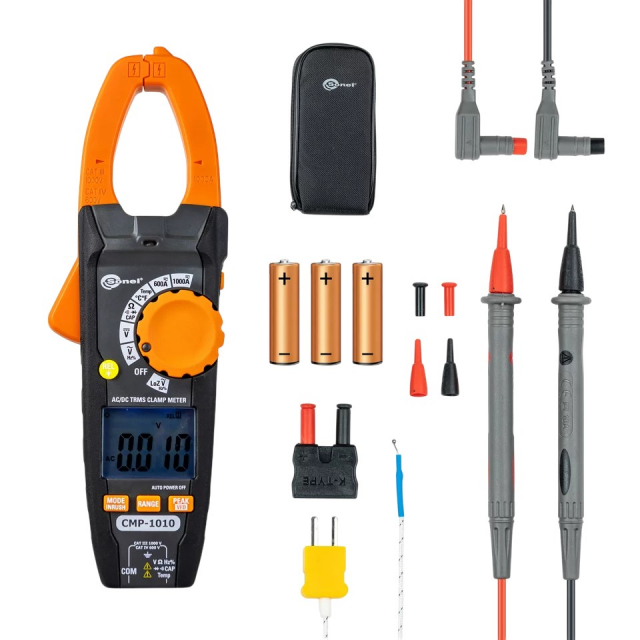

WMGBCMP1010 Includes Only:

Clamp Meter
Type K temperature probe
Temperature probe type K adapter

Basic features:

Counting: 6.000 digits
HOLD
Automatic range selection

Advanced features:

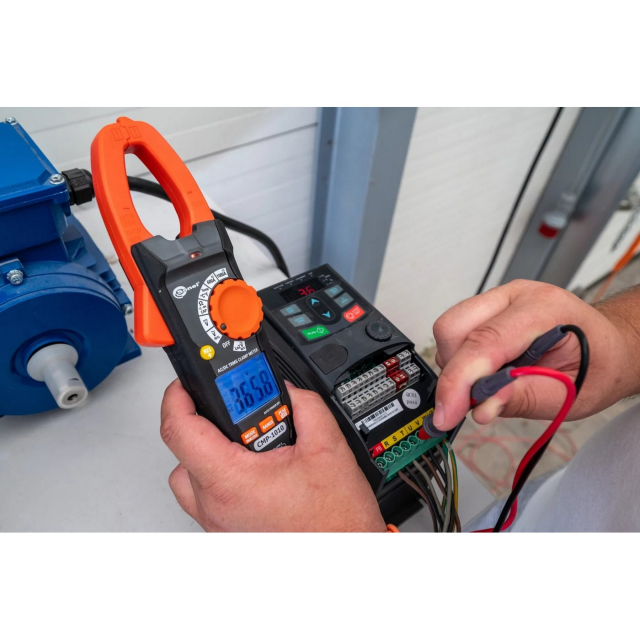

Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
Inrush current
Non-contact voltage detector
Peak MIN / Peak MAX
Relative measurement REL
TRMS measurement

Other features:

Auto-off
Empty battery indication
Integrated flashlight
Beeper
Display:
- Type: segment-based LCD, 4 digits
- Display backlight: manual

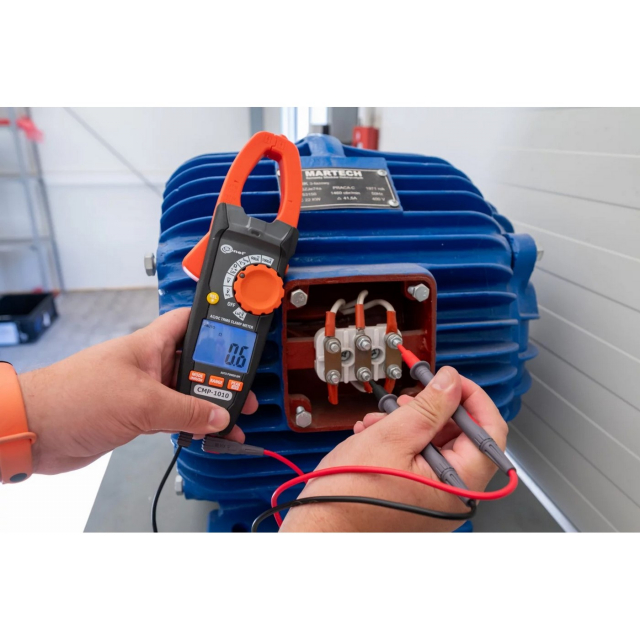

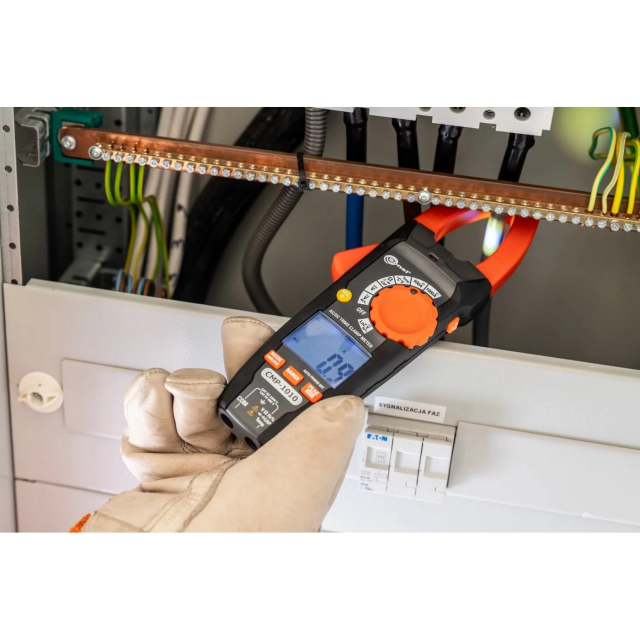

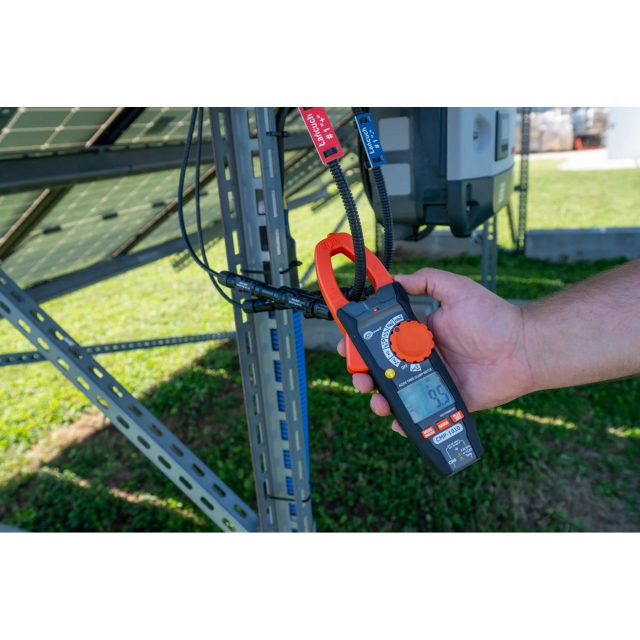

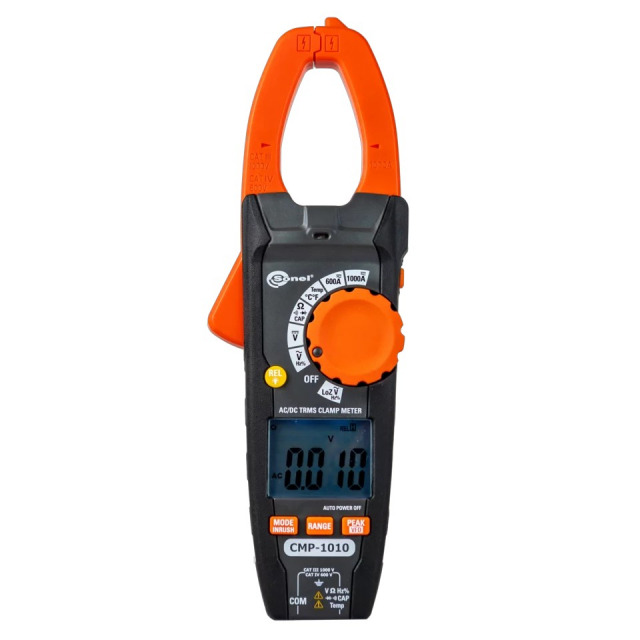

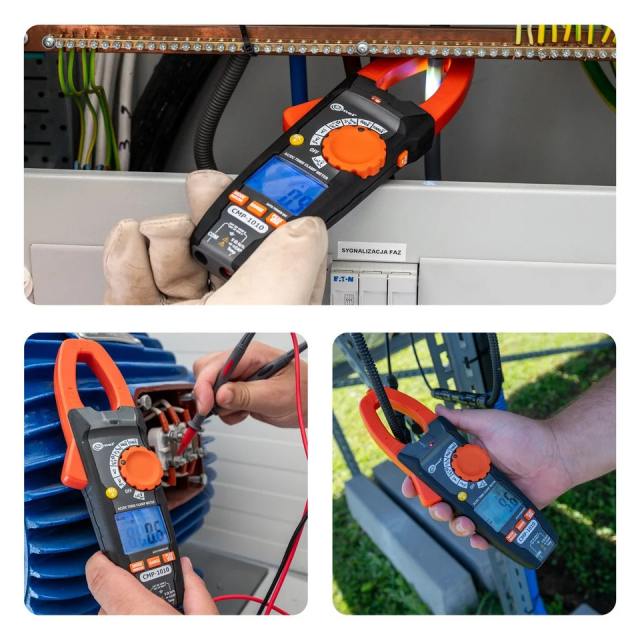

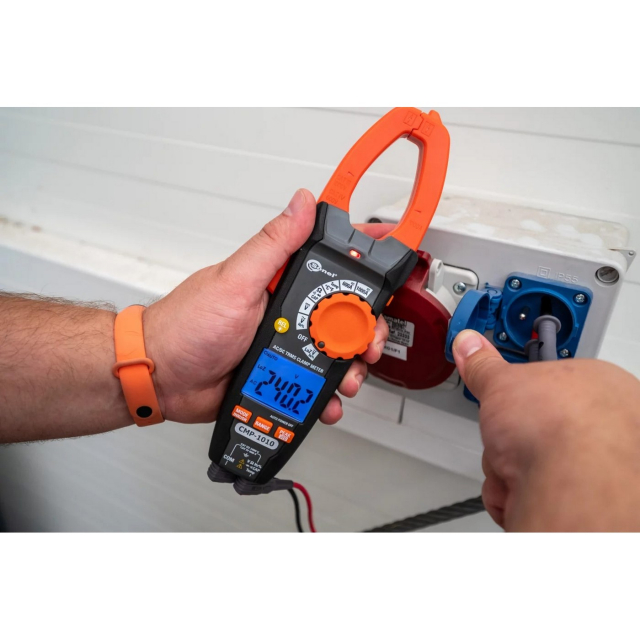

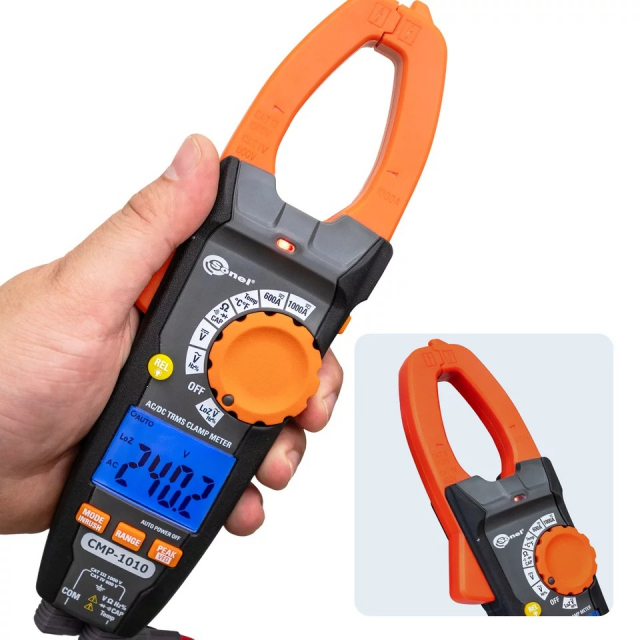

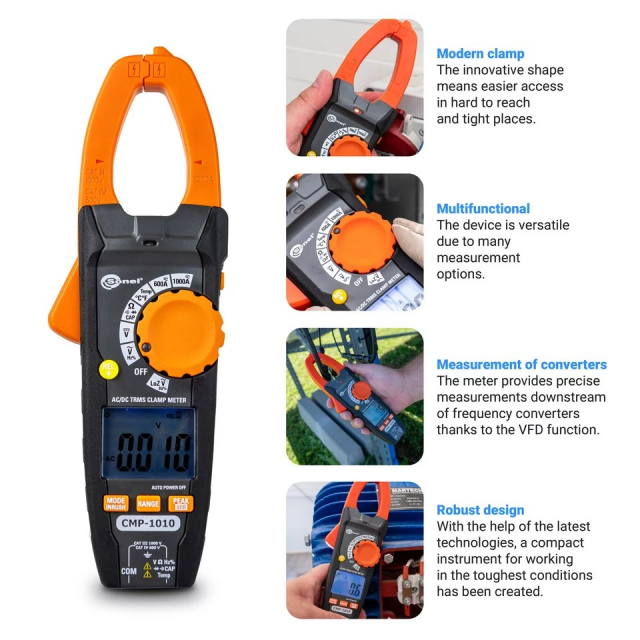

The Sonel CMP-1010 measures AC and DC current, AC and DC voltage and more. The meter provides precise measurements downstream of frequency converters. The device is versatile due to many measurement options, including low-impedance voltage measurement (Low Z). Darkness in the workplace is not a problem thanks to the built-in flashlight.

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

AC current

Range: up to 1000 A
Resolution: from 0.1 A
Accuracy: from ±(2.5% m.v. + 8 digits)

DC current

Range: up to 1000 A
Resolution: from 0.1 A
Accuracy: from ±(2.5% m.v. + 5 digits)

AC current

Range: up to 1000 V
Resolution: from 0.001 V
Accuracy: ±(1.5% m.v. + 5 digits)

DC current

Range: up to 1000 V
Resolution: from 0.1 mV
Accuracy: from ±(0.5% m.v. + 5 digits)

Low Z

Range: up to 300.0 V
Resolution: from 0.001 V
Accuracy: ±(3.0% m.v. + 40 digits)

Resistance

Range: up to 60.00 MΩ
Resolution: from 0.1 Ω
Accuracy: from ±(1.0% m.v. + 4 digits)

Frequency

Range: up to 99.99 kHz
Resolution: from 0.001 Hz
Accuracy: ±(1.2% m.v. + 5 digits)

Capacitance

Range: up to 100.0 mF
Resolution: from 0.01 nF
Accuracy: from ±(3.0% m.v. + 5 digits)

Duty cycle (%)

Range: 10.0 - 90.0%
Resolution: 0.10%
Accuracy: ±(1.2% m.v. + 2 digits)

Temperature measurement

Range: -20.0 - +1000°C / -4.0 - +1832°F
Resolution: 0.1°C/ 0.1°F
Accuracy: ±(3% m.v. + 5°C) / ±(3% m.v. + 9°F)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

AC current

Range: up to 1000 A
Resolution: from 0.1 A
Accuracy: from ±(2.5% m.v. + 8 digits)

DC current

Range: up to 1000 A
Resolution: from 0.1 A
Accuracy: from ±(2.5% m.v. + 5 digits)

AC current

Range: up to 1000 V
Resolution: from 0.001 V
Accuracy: ±(1.5% m.v. + 5 digits)

DC current

Range: up to 1000 V
Resolution: from 0.1 mV
Accuracy: from ±(0.5% m.v. + 5 digits)

Low Z

Range: up to 300.0 V
Resolution: from 0.001 V
Accuracy: ±(3.0% m.v. + 40 digits)

Resistance

Range: up to 60.00 MΩ
Resolution: from 0.1 Ω
Accuracy: from ±(1.0% m.v. + 4 digits)

Frequency

Range: up to 99.99 kHz
Resolution: from 0.001 Hz
Accuracy: ±(1.2% m.v. + 5 digits)

Capacitance

Range: up to 100.0 mF
Resolution: from 0.01 nF
Accuracy: from ±(3.0% m.v. + 5 digits)

Duty cycle (%)

Range: 10.0 - 90.0%
Resolution: 0.10%
Accuracy: ±(1.2% m.v. + 2 digits)

Temperature measurement

Range: -20.0 - +1000°C / -4.0 - +1832°F
Resolution: 0.1°C/ 0.1°F
Accuracy: ±(3% m.v. + 5°C) / ±(3% m.v. + 9°F)
