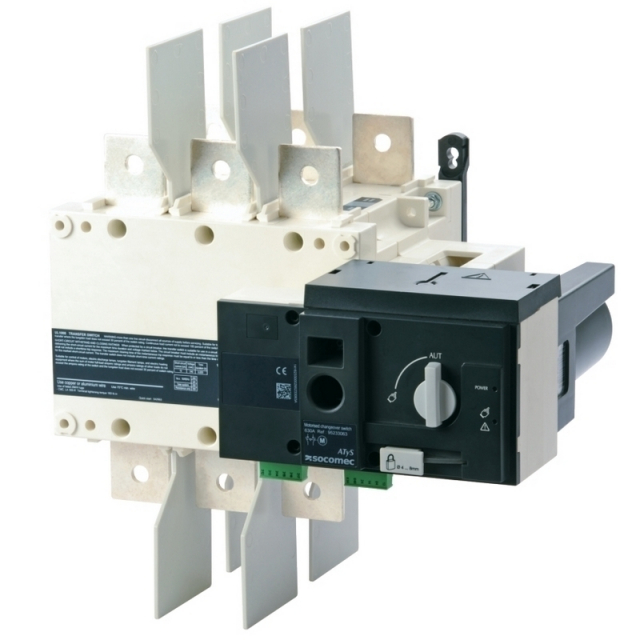

Socomec 97232020 ATyS Remotely Operated Transfer Switch 2 Poles 200A

Rated Current (A): 200, Poles: 2
  • Brand Socomec
  • Part # 97232020
  • Model # ATyS
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Rated Current (A):
Rated Current (A): 200
Poles:
Poles: 2

Socomec, 97232020, ATyS Remotely Operated Transfer Switch, UL1008, 2P, 200A

Features:

  • Robust and Reliable design
  • Maintenance-free
  • Compatible with virtually any TSE controls
  • Tested in full compliance with UL 1008
  • Three stable positions, not affected by voltage drops or vibrations
  • Back to back switching design offering an extremely compact solution
  • Make and break under load conditions
  • Robust and reliable design with motor factory assembled on the transfer switch
  • Compatible with virtually any TSE controller

Applications:

  • Standby power builders
  • OEM/Machine Builders
  • Industrial Control Panels Manufacturers (UL 508A)
  • Switchboards Manufacturers (UL 891)
  • Distributors

Compliance with standards:

  • UL 1008, Guide WPYV File 317092
  • IEC 60947-6-1

ATyS non-automatic transfer switch is designed for use in total system optional standby applications for the safe transfer between a normal and an alternate power source.

The changeover is done in open transition and with minimum supply interruption during transfer ensuring full compliance with UL 1008. The ATyS is a full on-load disconnector where the main components are based on proven technology, also meeting requirements in UL 98 standard.

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Standards
Conformity to standardsUL
Certificates and Declaration - Safety
UL file numberE317092
Technical Characteristics
Control operatorRTSE
Number of poles2
Rated current [A]200
Technical Characteristics - Connection terminals
Max. connection section / AWG300MCM
Min. connection section / AWG#6
Technical Characteristics - Environmental
Operating temperature-4 ... +122°F / -20 ... +50°C
Storage temperature-40 ... +158°F / -40 ... +70
Technical Characteristics - Mechanical
Endurance (number of operating cycles)6050
Technical Characteristics - Power supply
Power supply / Supply voltage VAC 50/60 Hz208-277 VAC ± 20%
Technical Characteristics - Short-circuit capacity
Auxiliary contacts / Electrical characteristicsAC300
Operation voltage 2 P - 3/4 P240/600
Rated operational current / 240 VAC resistive load200
Rated operational current / 240 VAC “Total System”200
Rated operational current / 480 VAC resistive load200
Rated operational current / 480 VAC “Total System100
Rated operational current / 600 VAC resistive load200
Rated operational current / 600 VAC “Total System”100
Short circuit rating at 600 VAC with “Any Breaker” / Short circuit capacity [ms]25
Short circuit rating at 600 VAC with “Any Breaker” / Short circuit rating [kA]10
Short circuit rating at 600 VAC [kA]100
Type of fuseJ
Technical Characteristics - Switching time
Switching time / Duration of electrical blackout0.6
Switching time / I to 0 or 0 to II0.85
Switching time / I to II or II to I1.3
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V]600
Rated operating voltage [V]240..600
Rated permanent current Iu [A]200
Rated short-time withstand current lcw [kA]10
Conditioned rated short-circuit current Iq [kA]100
Number of poles2
ETIM - Mechanical characteristics
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Colour control elementOther
Degree of protection (IP), front sideIP20
ETIM - Technical features
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationNo
Version as reversing switchYes
Number of switches2
Number of auxiliary contacts as normally open contact3
Motor drive integratedYes
Device constructionBuilt-in device fixed built-in technique
Type of control elementOther
InterlockableYes
Type of electrical connection of main circuitBolt connection
Logistics
Weight of the packing unit7.77
Length of the packing unit0.465
Width of the packing unit0.338
Depth of the packing unit0.325
Product Details
Country of originFR
Length of the product unit0.16
Width of the product unit0.328
Depth of the product unit0.244
Weight7.77
Classification
UNSPSC39122205
ETIM ClassEC000216
IGCC5177
Notes

***

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Standards
Conformity to standardsUL
Certificates and Declaration - Safety
UL file numberE317092
Technical Characteristics
Control operatorRTSE
Number of poles2
Rated current [A]200
Technical Characteristics - Connection terminals
Max. connection section / AWG300MCM
Min. connection section / AWG#6
Technical Characteristics - Environmental
Operating temperature-4 ... +122°F / -20 ... +50°C
Storage temperature-40 ... +158°F / -40 ... +70
Technical Characteristics - Mechanical
Endurance (number of operating cycles)6050
Technical Characteristics - Power supply
Power supply / Supply voltage VAC 50/60 Hz208-277 VAC ± 20%
Technical Characteristics - Short-circuit capacity
Auxiliary contacts / Electrical characteristicsAC300
Operation voltage 2 P - 3/4 P240/600
Rated operational current / 240 VAC resistive load200
Rated operational current / 240 VAC “Total System”200
Rated operational current / 480 VAC resistive load200
Rated operational current / 480 VAC “Total System100
Rated operational current / 600 VAC resistive load200
Rated operational current / 600 VAC “Total System”100
Short circuit rating at 600 VAC with “Any Breaker” / Short circuit capacity [ms]25
Short circuit rating at 600 VAC with “Any Breaker” / Short circuit rating [kA]10
Short circuit rating at 600 VAC [kA]100
Type of fuseJ
Technical Characteristics - Switching time
Switching time / Duration of electrical blackout0.6
Switching time / I to 0 or 0 to II0.85
Switching time / I to II or II to I1.3
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V]600
Rated operating voltage [V]240..600
Rated permanent current Iu [A]200
Rated short-time withstand current lcw [kA]10
Conditioned rated short-circuit current Iq [kA]100
Number of poles2
ETIM - Mechanical characteristics
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Colour control elementOther
Degree of protection (IP), front sideIP20
ETIM - Technical features
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationNo
Version as reversing switchYes
Number of switches2
Number of auxiliary contacts as normally open contact3
Motor drive integratedYes
Device constructionBuilt-in device fixed built-in technique
Type of control elementOther
InterlockableYes
Type of electrical connection of main circuitBolt connection
Logistics
Weight of the packing unit7.77
Length of the packing unit0.465
Width of the packing unit0.338
Depth of the packing unit0.325
Product Details
Country of originFR
Length of the product unit0.16
Width of the product unit0.328
Depth of the product unit0.244
Weight7.77
Classification
UNSPSC39122205
ETIM ClassEC000216
IGCC5177
Note

Note: Please read description carefully. Do not base your order on the picture presented.
