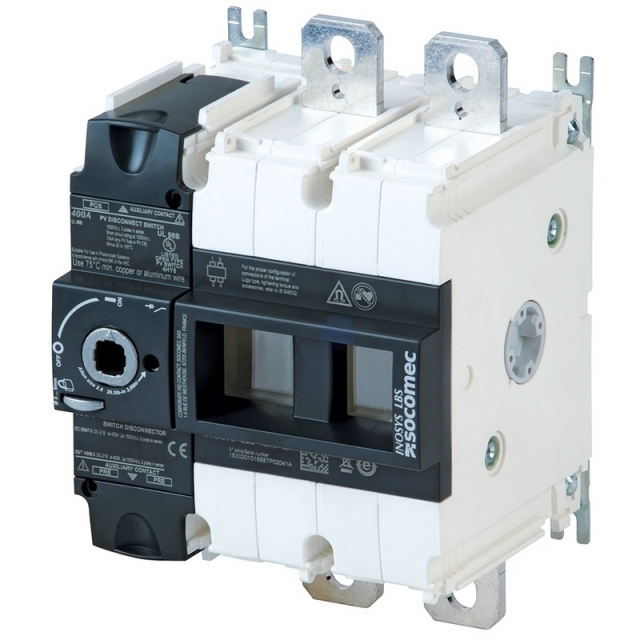

Socomec, 86P02041, Inosys DC Load Break Switch, LBS Manuel, IEC, 400A, 2P, 1500VDC, F3
Features:
- High performance power switching in a compact frame
- Safe and reliable operation
- Designed for harsh environments
- Easy to install
- Modular solution for flexible configuration
- Range 400 A
- 1500 VDC
- Reinforced safety with visible breaking indication
- High efficiency with low power loss
Applications:
- Disconnection within PV installation
- Battery protection
- Rapid shutdown for firefighter safety
- Isolation of DC processes
Compliance with standards
- IEC 60947-3
- DC-21B & DC-PV2
- CCC
Inosys is a range of load break switch can be controlled manually, by using the handle to disconnect all or part of the electrical installation. It ensure on-load opening / closing and safe disconnection of any direct current low voltage electrical circuit up to 2000 VDC. It`s can also be used for emergency power switching applications. It is the first switch on the market capable of handling 2000 VDC.
For more information, please see
Data Sheet
