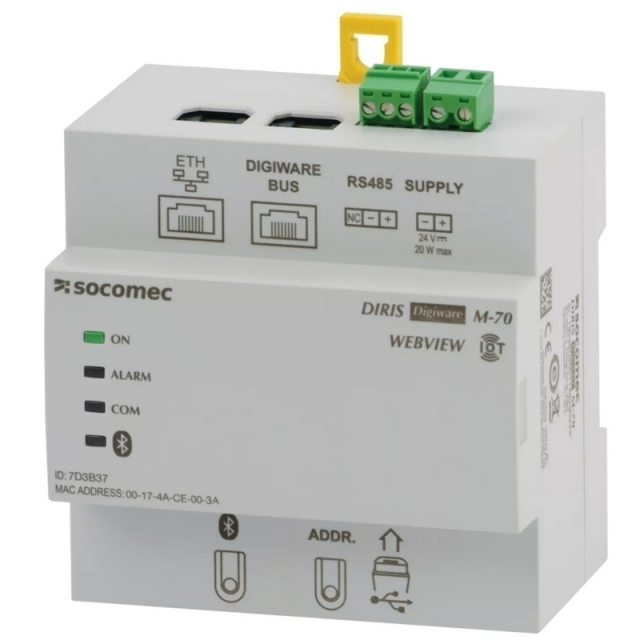

Socomec 48290222 Diris Digiware M 70 Communication Gateway

Socomec, 48290222, Diris Digiware M-70 Multifunction Communication Gateway, RS485 + Ethernet + WEBVIEW-M

Features:

• Plug & Play
• Advanced connectivity
• Embedded web server
• Cyber security
• Email notifications
• 24 VDC power supply
• Modbus RTU/TCP, BACnet IP, SNMP v1, v2, v3 & Traps, HTTPS, FTPS, SMTPS, SNTP, DHCP
• Up to 32 devices (max. 196 circuits) displayed
• Free embedded web-based software

Applications:

• Data centre
• Building
• Industrial process

Compliance with standards:

• IEC 62974-1 (Energy Server)
• IEC 62443 (Cyber security)
• UL 61010 Guide FTRZ/PICQ File
• E257746
• FCC
• IC

Advantages:

Plug & Play

• Direct Digiware and RS485 to Ethernet gateway
• Automatic detection of connected devices
• Easy setup
• Safety Extra Low Voltage 24 VDC power supply

Advanced connectivity

• Ethernet output for communication using multiple protocols: Modbus TCP, BACnet IP and SNMP v1, v2, v3 (encrypted) to suit any metering and power monitoring application
• Possible to configure as RS485 slave to communicate measurement data to a second PLC, for example. Embedded web server A WEB-CONFIG is embedded in the M-50 gateway to configure the communication architecture. WEBVIEW-M is embedded in the M-70 gateway and comes without license fees to visualise measurements and consumption remotely

Cyber security

The M-50 and M-70 gateways include advanced cyber security features following the IEC 62443 referential to secure the transmission of data and reduce the risk of cyber attacks:

• customised security policy (blocking or restricting certain protocols and services)
• secured HTTPS navigation by uploading TLS/SSL certificates
• secured data push (FTPS, SMTPS)
• implementation of a Firewall and Whitelist
• rules to guard against denial-of-service attacks

Email notifications

The M-50/M-70 gateway can send email notifications in case of an alarm.

The DIRIS Digiware M-70 communication gateways is the access point for the DIRIS Digiware system, centralising the 24 VDC power supply and communication in one single point.The M-70 act as the Ethernet gateway for all the devices connected on the Digiware or RS485 bus, and integrate a web server to configure the network parameters and to remotely display measurement data. The M-70 gateways offer a wide range of functionalities, including:

• Bluetooth connectivity to collect data from environmental sensors
• memory extension for connected devices
• automatic export of logged consumption and data to an FTP(S) server
• notification emails if there is an alarm on one of the connected devices (SMTPS)
• automatic time synchronisation of all connected devices via SNTP

For more information, please see Data Sheet
