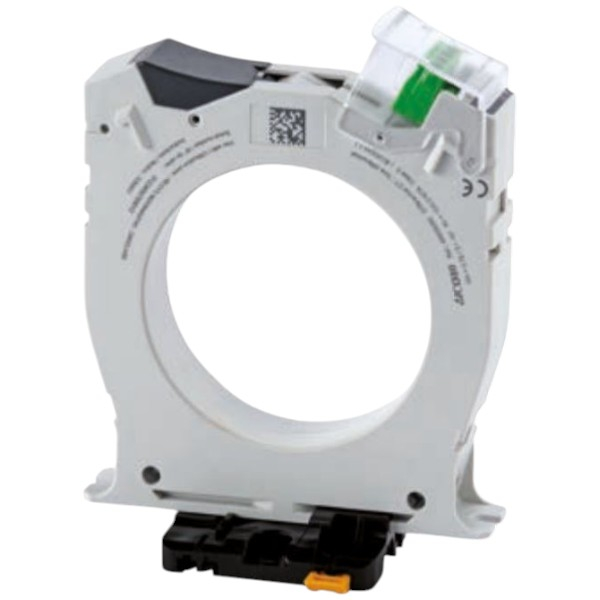

Socomec 47508081 DIP Series 80mm Closed Core Balance Transformer

47508081 Includes Only:

• Security sealing cover
• Pluggable terminal block
• DIN-rail mounting accessory for diameters less than 200 mm

Features:

• Optimum performance:
  • Thanks to patented innovation, the conductors are perfectly centred in the residual CT to ensure accurate measurement and enhanced immunity to mains disturbances.
  • It also enables direct mounting of the residual CT onto the cable.
• High sensitivity:
  • Socomec residual CTs can measure leakage currents from 3 mA, enabling early detection of insulation degradation.
• Patented centring solution:
  • The flexible cable locator is a patented SOCOMEC innovation.
  • With it, you can locate the cable within the core balance transformerto ensure accurate measuring and improve its immunity to disruptions in the mains power.
  • It also means you can mount the core balance transformer directly on a cable.

Conformity to standard:

• IEC 61869-1

You need core balance transformers to install fault detection and locating units.

The transformers surround the active conductors to highlight a faulty current to the earth. Socomec core balance transformers meet measurement sensitivity needs and are suitable for ISOM Digiware locating systems.Solid, they are suitable for all cabling configurations. The ISOM T-15 adapter is needed to connect to the locating core balance transformers on the ISOM Digiware F-60.
