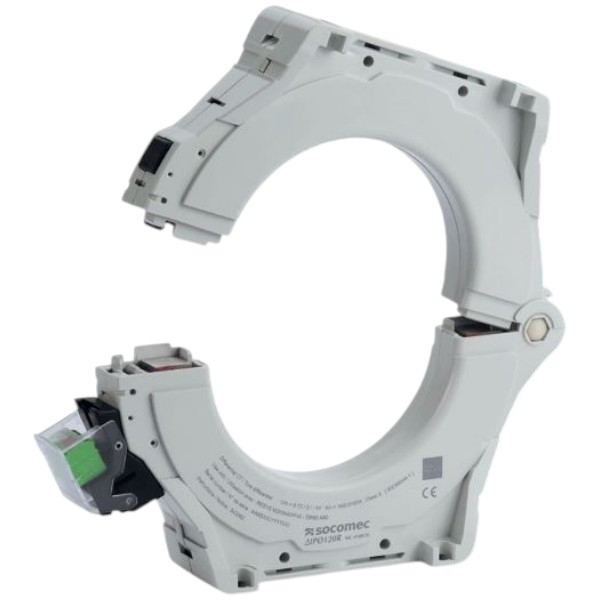

Socomec 47506051 DIP-R Series 50mm Open Core Balance Transformer

47506051 Includes Only:

• Security sealing cover
• Pluggable terminal block
• DIN-rail mounting accessory for diameters less than 200 mm

Features:

• Optimum performance:
  • Thanks to patented innovation, the conductors are perfectly centred in the residual CT to ensure accurate measurement and enhanced immunity to mains disturbances.
  • It also enables direct mounting of the residual CT onto the cable.
• High sensitivity:
  • Socomec residual CTs can measure leakage currents from 3 mA, enabling early detection of insulation degradation.
• Clear alarm indication:
  • The T-10 RJ12 adaptor integrates an alarm LED to quickly locate RCM alarms inside electrical cabinets.
• Plug & Play:
  • Direct mechanical and electrical connections to the residual current transformer.
  • RJ12 connection to the DIRIS Digiware R-60 for easy integration of the Digiware system.

Conformity to standards:

• IEC 62020
• IEC 61869-1
• ISO 14025

Residual current transformers enclose active conductors providing the differential summation of vector currents, which enables the detection of leakage currents.Split core (ΔIP-R) is suitable for all wiring configurations.

Residual CTs can be mounted on DIN rail, on a backplate or directly on the cable, and adapt to all integration constraints for quick and easy wiring.
