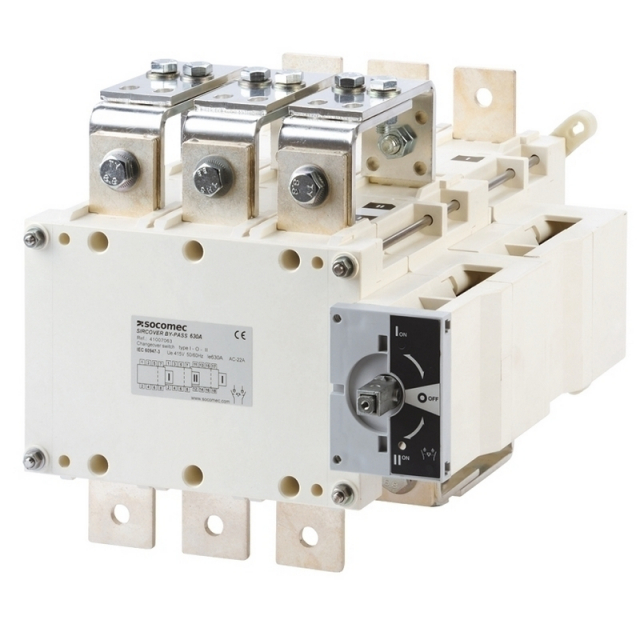

Socomec, 46AC7025, Sircover Manually Operated Transfer Switch, I-I+II-II 3+6P, 250A
Features:
- A complete range
- Stable positions
- On-load switching
- Range from 125A to 1600A
- Comes in 3P
- Direct handle or external handle
Applications:
- Manufacturing
- Power distribution
Compliance with standards:
Advantages:
Easy to connect
For ratings of 2000 to 3200 A, offer copper bar connection pieces. This gives you the option of different connection methods - flat, edgewise with top or bottom bridging.
Stable positions
SIRCOVER devices have three stable positions, unaffected by voltage fluctuations and vibrations, protecting your loads from network disturbances.
On-load switching
With its AC-23 and AC-33 characteristics, tested according to standards IEC 60947-3 and IEC 60947-6-1, the SIRCOVER enables safe on-load switching for any type of load. With its on-load transfer capabilities, it is not necessary to isolate loads prior to transfer therefore the SIRCOVER offers an economical solution.
Sircover products are manually operated transfer switches with positive break indication for overlapping contact switching (I-I+II-II). For applications where both sources are synchronised and there is to be no interruption to the load supply during transfer - comes in 3 poles.They provide on-load transfer between two sources for any low voltage power circuit, as well as safety isolation by double breaking per pole. Other applications include source inversion (e.g. to change the direction of a motor) or grounding/earthing.
