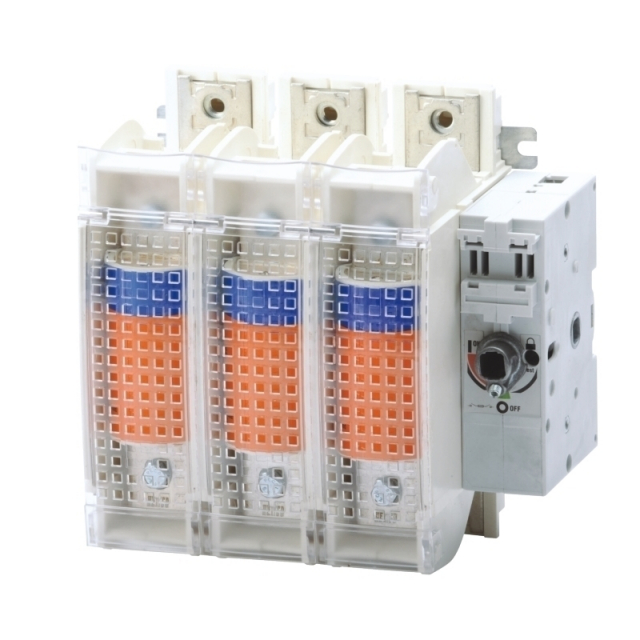

Socomec 38613020 Fuserbloc Fusible Discon Switch 200A 3P UL Fuse J

Rated Current (A): 200, Poles: 3
  • Brand Socomec
  • Part # 38613020
  • Model # Fuserbloc
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Rated Current (A):
Rated Current (A): 200
Poles:
Poles: 3

Socomec, 38613020, Fuserbloc Fusible Discon Switch Ext&Dir F/L R OP-200A-3P-UL-Fuse J

Features:

  • Improved safety
  • High breaking capacity
  • Multi-use
  • Simplified use
  • Accepts Class CC, J and L fuses
  • Very high short circuit protection, up to 200 kAIC
  • Used of glass fiber renforced polyester for both high mechanical and thermal resistance
  • Make and break under load conditions to provide safety of person and equipment
  • Large range of connection accessories and mounting brackets for quick and easy installation
  • Double breaking per pole (top and bottom) providing extra protection

Compliance with standards:

  • UL489, Guide WJAZ File E255272 (Frame size 1 and 2)
  • UL98, Guide WHTY File E201138 (Frame sizes 3 to 8)
  • CSA22.2 #5, Class 4652-06 File 112964 (Frame size 1 and 2)
  • CSA22.2 #4, Class 4651-02 File 112964 (Frame sizes 3 to 8)
  • IEC 60947-3

Fuserbloc fusible disconnect switch is heavy duty switch that make and break power circuits on and off load. The switch employ double break contacts per pole that ensure complete isolation of the fuse when the switch is in the "OFF" position. This switch is extremely durable and is tested and approved for use in the most demanding applications.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Certificates and Declaration
Conformity to standard #1UL98
Conformity to standard #2CSA-C22.2 No. 4
Conformity to standard #3Class 4651 02
Standards
Conformity to standardsUL
Certificates and Declaration - Safety
UL file numberE201138
Technical Characteristics
Fuse sizeJ
Number of pole3
Rated current [A]200
TypeI-0-Test
Frame size6
Technical Characteristics - Connection terminals
Max. connection section / AWG300MCM
Min. connection section / AWG#6
Technical Characteristics - Environmental
Operating temperature-4 ... +122°F / -20 ... +50°C
Storage temperature-40 ... +158°F / -40 ... +70°C
Technical Characteristics - Max. motor HP
DC FLA motor max. / 125 VDC15/112
DC FLA motor max. / 250 VDC40/140
FLA 1 ph motor max. / 120 VAC15/135
FLA 1 ph motor max. / 220-240 VAC40/176
FLA 1 ph motor max. / 240 VAC40/176
FLA 3 ph motor max. / 220-240 VAC60/154
FLA 3 ph motor max. / 440-480 VAC125/156
FLA 3 ph motor max. / 600 VAC150/144
Technical Characteristics - Mechanical
Endurance (number of operating cycles)8000
Operating torque [lbs.in/Nm]90/10.2
Technical Characteristics - Short-circuit capacity
Auxiliary contacts / Electrical characteristicsA600
Max fuse rating [A]200
Operation voltage 2 P - 3/4 P600VAC
Short circuit rating at 600 VAC [kA]200
Type of fuseJ
UL General use rating200
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V]600
Rated permanent current Iu [A]200
Rated operation power at AC-23, 400 V [kW]220
Conditioned rated short-circuit current Iq [kA]200
Number of poles3
ETIM - Mechanical characteristic
Cable entryTop/bottom
Equipped with connectorsNo
Suitable for floor mountingYes
Suitable for front mountingYes
Suitable for busbar mountingNo
Degree of protection (IP), front sideIP20
ETIM - Technical features
Version as main switchYes
Version as safety switchYes
Suitable for fusesOther
With error protectionNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Position control elementFront side
Motor drive integratedNo
Version as emergency stop installationYes
Logistics
Weight of the packing unit3.55
Length of the packing unit0.155
Width of the packing unit0.24
Depth of the packing unit0.25
Product Details
Country of originTN
Length of the packing unit0.195
Width of the packing unit0.1962
Depth of the packing unit0.13
Weigh3.55
Classification
UNSPSC39122233
ETIM ClassEC001040
IGCC5291
