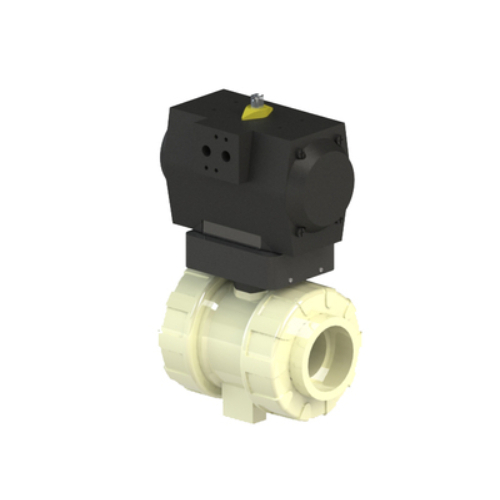

Simtech TBS 101 2 007-NO TBS Series, 3/4" Ball Valve, Normally Open

Simtech, TBS 101 2 007-NO, TBS Series, 3/4" PVC/EPDM True Union Ball Valve, Pneumatically Actuated, Normally Open, Socket

All ball valves are constructed of the materials indicated. Valves are manufactured with an adjustable carrier, threaded into the body to ensure the valve is blocking in both directions. The valve stem is a safety shear stem with double O-ring seals. The body has unions on both ends for adjusting the carrier, PTFE seat is energized by O-ring, the ball be machined and tumbled to ensure roundness. The handle is of a safety design, with a locking switch as a standard.

Features:

• Low maintenance and extended operational life
• Energized PTFE Seats
• Safety handle equipped with locking switch
• Electric and Pneumatic Actuation Available
• Double O-Ring Seal on Stem
• Buttress Threads
• PP union Nuts and Stem are Glass Filled for Strength
• Threaded Panel mount design
