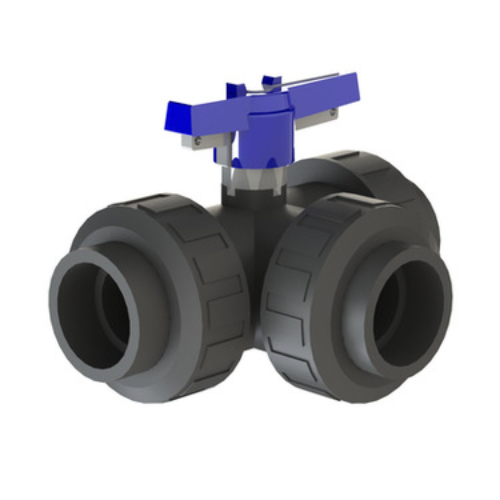

Simtech TBM 101 2 010-T TBM Series, 1" PVC/EPDM 3 - Way Ball Valve

Size: 1", Connection: Socket, Material: PVC/EPDM
  • Brand Simtech
  • Part # TBM 101 2 010-T
  • Model # TBM Series
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 1"
Connection:
Connection: Socket
Material:
Material: PVC/EPDM

Simtech, TBM 101 2 010-T, TBM Series, 1" PVC/EPDM 3 - Way True Union Ball Valve, T - Port, Socket

All 3-Way ball valves are constructed with the materials indicated. All valves be true union design with Teflon seats energized by an O-Ring. All valves supplied with Safety handle equipped wi the lockout/Tagout, standard, as manufactured by SIMTECH.

Features:

  • T-Port
  • True Union full port design
  • Energized Teflon Seats
  • Safety handle equipped with lockout / Tagout standard


See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews

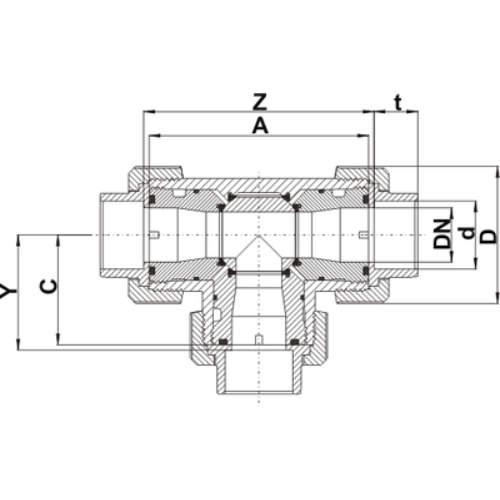

A (in)4.72
B (in)2.02
C (in)2.362
d (in)1.260
D (in)2.756
H (in)3.209
L (in)6.772
T (in)0.9
Y (in)2.480
Z (in)4.961
Size1"
End ConnectionIPS Socket
SealsEPDM
SeatsPTFE
MaterialPVC
Pressure Rating232 psi
Port"T" Port
Torque: Operating (lb/in)36
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
A (in)4.72
B (in)2.02
C (in)2.362
d (in)1.260
D (in)2.756
H (in)3.209
L (in)6.772
T (in)0.9
Y (in)2.480
Z (in)4.961
Size1"
End ConnectionIPS Socket
SealsEPDM
SeatsPTFE
MaterialPVC
Pressure Rating232 psi
Port"T" Port
Torque: Operating (lb/in)36
Note

Note: Please read description carefully. Do not base your order on the picture presented.
