Simtech BFP 112 6 160-G 16" Butterfly Valve Gear

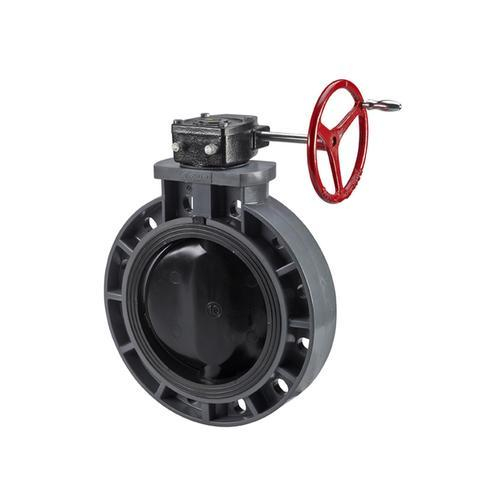

Simtech, BFP 112 6 160-G, 16" PVC/FPM Butterfly Valve Gear, Flanged - Wafer

All Butterfly Valves are constructed of the materials indicated. The shaft shall be stainless steel, run through the entire disc, and be removable and replaceable independently of the disc. The shaft shall be protected by a double seal arrangement on the top and bottom of the disc. Each double seal arrangement will feature a dynamic seal (o-ring) and static seal (integrally molded on the liner). The liner shall be molded and contoured through the entire body and face of the valve to act as a flange gasket. Liner and disc shall be the only wetted parts. Butterfly valves must be bubble tight and flange design, as manufactured by SIMTECH.

Features:

• Bubble tight closure
• Ideally suited to flow control in minimum spaces
• Disc designed to minimize flow loss
• Easy to view position indicator
• Stem is isolated and not a wetted part
• Optional gear operators for all sizes
• Electric or pneumatic actuation available
• Optional stem extensions and/or square operating nuts available
• Automation
