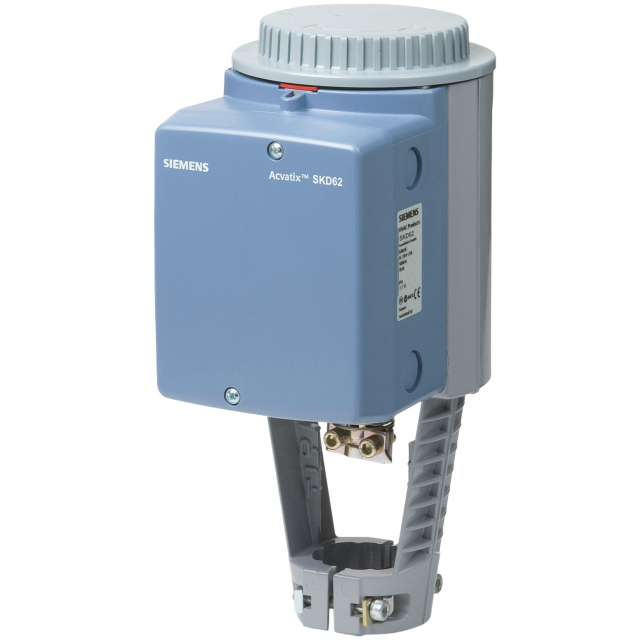

Siemens SKD62U Flowrite Electro-Hydraulic Actuator, 24Vac, 1000 N

Siemens, SKD62U, Flowrite Electro-Hydraulic Actuator, 24Vac, 1000 N, Proportional, SR, 3/4" Stroke

Features:

• The Flowrite SKD Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke.
• This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve.
• Normally closed and 3-way upper port nominal force is 225 lb-in (1000N); normally open and 3-way bypass port is 258 lb-in (1150N).
• Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and non-spring return functionality.
