Siemens 599-04316-45 2" Control Valve, 45 GPM
Brand:
Siemens
Part #:
599-04316-45
Condition:
Brand New
Brand New $559.06 /Each
$1,471.22 You save $912.16 62%
Manufacturer warranty Description

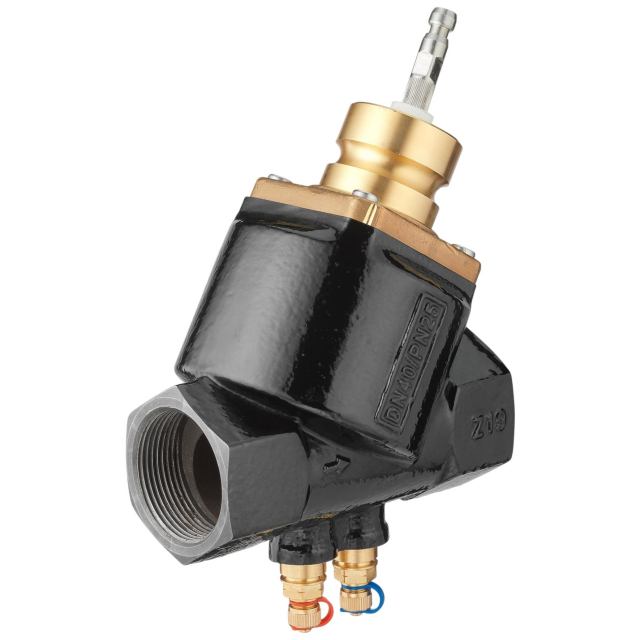

Siemens, 599-04316-45, Normally Open 2" Pressure Independent Control Valve, 45 GPM
Features:
- The Pressure Independent Control Valves include a pressure regulator, a flow limiter, and a control valve in a single device.
- All actuators have a direct-coupled installation, manual override, and visual position indication.
- Typical applications include control of hot or chilled water or water-glycol solutions up to 50% in closed-loop systems.
Technical details
Main features
- Factory Preset Maximum (GPM) 45
- End Connection NPT
- Port Configuration 2-Way Normally Open
- Dimensions (W x H x D) 3.7 x 8.78 x 5.47 in
- Connecting thread Internal NPT thread
- Medium Water, Water with anti-freeze
- Stroke 15 mm
- Medium temperature 34 - 248 °F
- Rangeability ≥ 100
- Leakage rate ANSI Class IV (0.01%)
- Material, inside set Plug: Brass Stem, spring: Stainless Steel Seals: EPDM 281 O-ring
- Max GPM 50 gpm
- Min GPM 10 GPM
- Preset GPM 30 GPM
- Material, valve body Ductile Iron
- Valve Body Style Stroke-Globe
- DN 50
