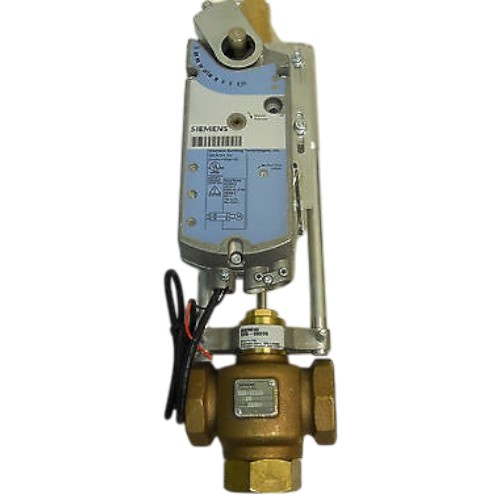

Siemens 298-03144 Flowrite 599 Valve Assembly, 3-Way, 1/2", 1Cv

Siemens, 298-03144, Flowrite 599 Series Valve Assembly, 3-Way Mixing, FNPT x FNPT, 1/2", 1Cv

Features of Valve:

• ANSI Leakage Class IV (0.01% of Cv)
• Cartridge-type packing
• Direct-coupled universal bonnet
• Flowrite valves are generally recommended for water, steam, and 50% water-glycol solutions.

Features of Actuator:

• Brushless DC motor technology with stall protection
• Bi-directional fail-safe spring return (actuator dependent)
• Direct or reverse acting, selectable by field installation
• All metal housing
• Assembly consisting of: OpenAir GCA161.1U Electronic Actuator and linkage.
• The assembly is ready for field installation on a 1/2- to 2-inch Flowrite two- or three-way valve

Flowrite 599 Series Valve includes an actuator and a valve in a single device.
