Siemens 278-03058 Flowrite 599 Valve Assembly, 2-Way, 3/4", 6.3Cv

Siemens, 278-03058, Flowrite 599 Series Valve Assembly, 2-Way, Normally Open, Linear, Steam Packing, FNPT x FNPT, 3/4", 6.3Cv

Features of Valve:

• ANSI Leakage Class IV (0.01% of Cv)
• Cartridge-type packing
• Direct-coupled universal bonnet
• Flowrite valves are generally recommended for water, steam, and 50% water-glycol solutions.

Features of Actuator:

• 8-inch Pneumatic Actuator
• Completely enclosed actuator housing protects the diaphragm, spring, and start point adjuster.
• The start point of the actuator spring is adjustable. This allows the valve to be sequenced.
• Easy installation.
• The Flowrite AP 599 Series 8-inch pneumatic valve actuator is designed for use with the Flowrite VF 599 Series valves with a 3/4-inch (20 mm) stroke.
• 599-01051 High Temperature

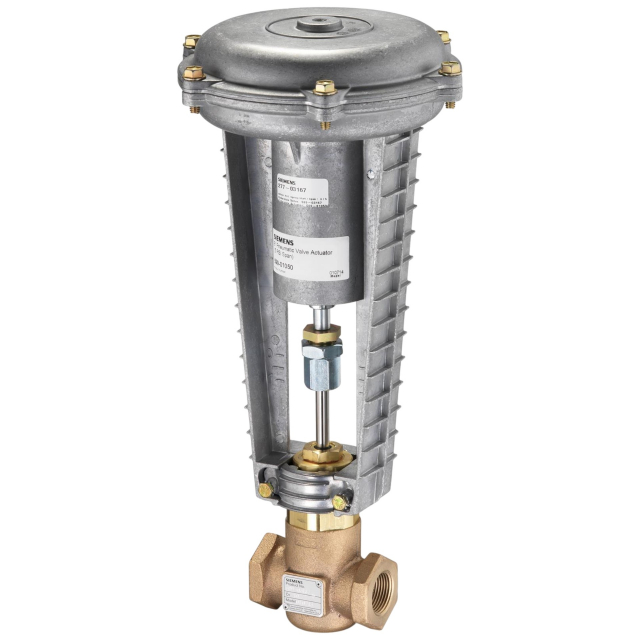

Flowrite 599 Series Valve includes an actuator and a valve in a single device.
