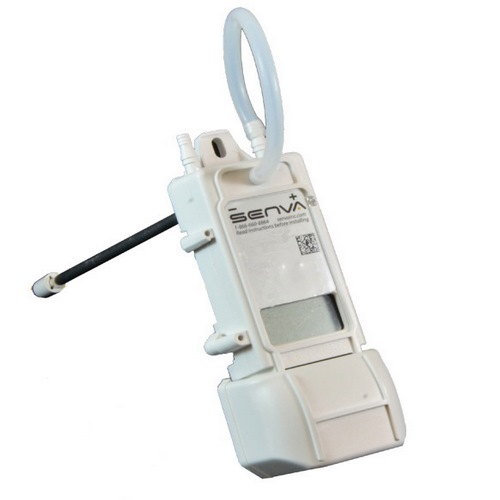

Senva Sensors, P4-0250-DB2LP, P4 Series Value Pressure Sensor with Fixed Range 0-2.5" w.c., Output 4-20mA, 3 Wire, Accuracy 0.25% of Selected Range NIST, Bi Directional with LCD Display and Duct Probe
Applications:
- Building (zone) pressure
- Filter condition measurement
- Duct/static
- OEM HVAC
Features:
- Duct, filter, and room pressure with a single unit with RP-6 probe addition
- Non-position sensitive for easy placement accuracy
- DIN mount flat or side to conserve panel space
- Conduit cover for 3/8" flex connectors...no extra parts required
- LED: Power heartbeat, auto-zero complete, 110% over pressure; facilitates locating sensor in ductwork
The P4 dry media pressure transmitter features fixed ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Innovative static probe integrates with unit or can be mounted remotely for static pressure.
