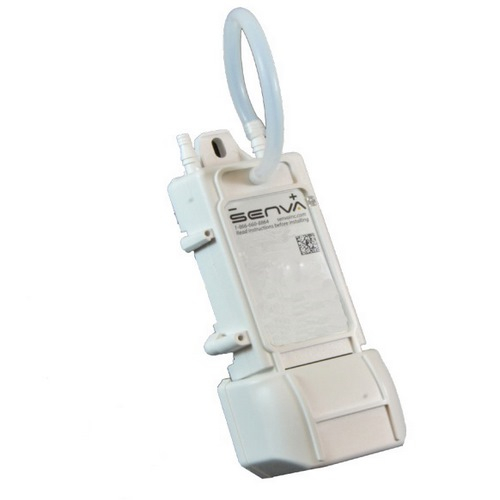

Senva Sensors, P4-0010-DU1XX, P4 Series Value Pressure Sensor with Fixed Range 0-0.10" w.c., Output 4-20mA, 3 Wire, Accuracy 1% of Selected Range, Uni Directional
Applications:
- Building (zone) pressure
- Filter condition measurement
- Duct/static
- OEM HVAC
Features:
- Duct, filter, and room pressure
- Non-position sensitive for easy placement accuracy
- 10VDC or 4-20 mA loop and or 3 Wire powered versions
- DIN mount flat or side to conserve panel space
- Conduit cover for 3/8" flex connectors...no extra parts required
- LED: Power heartbeat, auto-zero complete, 110% over pressure; facilitates locating sensor in ductwork
The P4 dry media pressure transmitter features fixed ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Innovative static probe integrates with unit or can be mounted remotely for static pressure.
