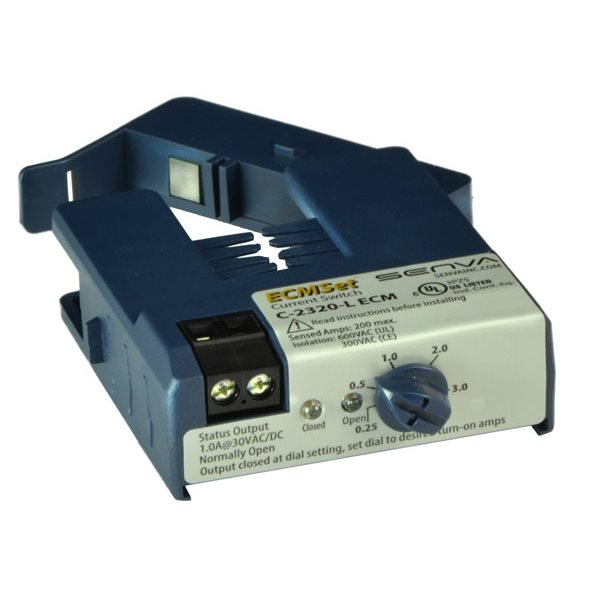

Senva Sensors C-2320-L ECM C-2320 Current Switch, ECM, 0.25-200A Range
Brand NewNotification
WARNING: "Senva products may contain BPA or other chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.". For more information go to www.P65Warnings.ca.gov
Manufacturer warranty Description
Senva Sensors, C-2320-L ECM, C-2320 Current Switch, ECM, Split-Core, 0.25-200A Range
Features:
- Reliable operation on ECM motors
- Set trip point with easily scaled dial to that sensor only turns on when motor is actually running
- Super low turn-on adjustment scale Maintenance-free-no call backs
- No hazardous guesswork. Multi-turn adjustments are a thing of the past
- Reduce the risk of arc flash; sensor can be set without calibration in live enclosure
Applications:
- No/go run detection for EC motors
- On set-point prevents false trips due to EC inverter stand-by current
ECMSet is designed for no/go run detection on electronically commutated motors (ECMs) . ECMs draw a small amount of AC standby current to power their inverter, up to 1A, even when the motor isn't running. The ECMSet features a high resolution adjustable turn-on setpoint to ignore standby current, preventing false ON status indications.
Technical details
- Frequency Range 50/60Hz
- Output Type NO, solid-state FET
- Insulation Class 600V RMS. For use on insulated conductors only! Use minimum 75 ° C insulated conductor
- Temperature Rating -15-60 ° C
- Power LED Yes
- Standard Output Rating 1.0A at30VAC/DC
- Max A 200A
- N.O. Output 1.0A at30VAC/DC
- Line Voltage Output Rating 0.2A at120VAC (-HV ONLY)
- Sensor Power Induced
- Trip LED Yes
- Min ON Adjustment 0.25A
