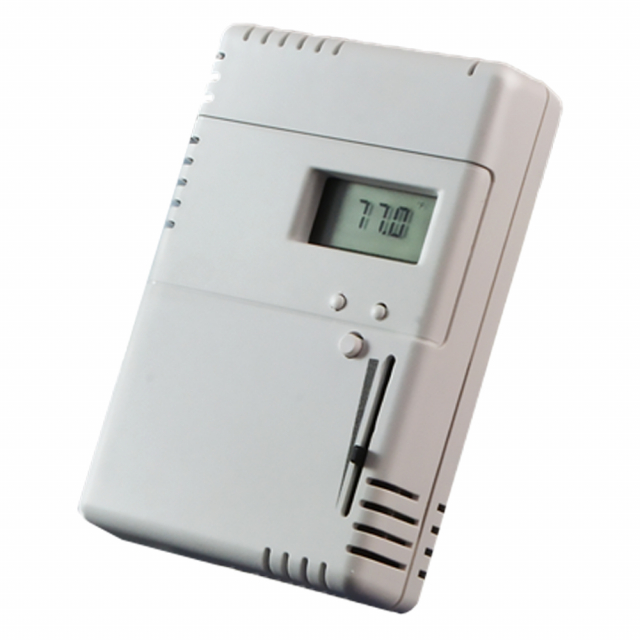

Senva Sensors AQW-AAAACE1 AQW Series Temp Sensor, Analog, 10K2, Push Button
Condition:
Brand New
Brand NewChoose RTD/Thermistor
Contact Us For Pricing
Notification
WARNING: "Senva products may contain BPA or other chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.". For more information go to www.P65Warnings.ca.gov
Manufacturer warranty Description
Senva Sensors, AQW-AAAACE1, AQW Series Temp Sensor, Analog, 10K2 Thermistor, Push Button
Features:
- Standard LCD and temperature on each device
- Options to add CO2 and/or RH sensing elements
- Field replaceable elements for RH
- With 0-5/10V Analog or BACnet protocol communication
- LCD for easy setup of all parameters (concealment cover included)
- Programmable set-points for complete control
- Provision to offset CO2 reading
- Optional thermistors, sliders and override button
Applications:
- Controlling ventilation in response to occupancy
- Facilitates compliance with ASHRAE 62.1 standard for air quality
- Offices, conference rooms, and public assembly areas
Technical details
Main features
- Color White
- Dimensions 4.85"h x 3.25"w x 1.19"d
- Power Supply 12-30VDC/24VAC(1), 100mA max.
- Material ABS plastic
- Push Button User Push Button
- Type NTC Thermistor
- Resolution 0.05° C
- RTD/Thermistor 10k type 2
- Temperature 0--5/10V standard, Scaling 50°F to 95°F (10°C to 35°C); thermistor/RTD values optional
- Humidity 0-95% Non-Condensing
- Repeatability +/-0.2° C
- Sample Rate 100 milliseconds
- Update Rate Continuous
- Programmable Relay Solid-state output, 1A at 30VAC/DC, N.O. Source Selectable: CO2, RH, Temperature
- Spt, Set point, Hi (On) Sets relay turn-on threshold (800ppm default)
- SPh, Set point, hysteresis (Off) Sets the relay turn-off hysteresis (100ppm default)
- SCL, Scaling 0-2000ppm or 0-5000ppm (2000ppm default)
- AdJ, Adjustment CO2 Offset adjustment +/-250ppm (0 default)
- CAL, Auto Calibration Period Off, 7 days, 14 days, 30 days, 60 days (14 days default)
- FC, Displayed Temp Unit F degrees fahrenheit (default), °C degrees celsius
- LuL Analog Output Scale Su 5.0V full scale, 10v 10.0V full scale (default)
- rUn, Run Mode Displays temp and optional CO2 and RH
- Nominal Accuracy +/-0.5° C (operating range)
- Maximal Accuracy +/-1.0° C (at 25° C), +/-2.0° C (operating range)
- Operating Environment Temperature 32 to 122oF (0 to 50oC)
