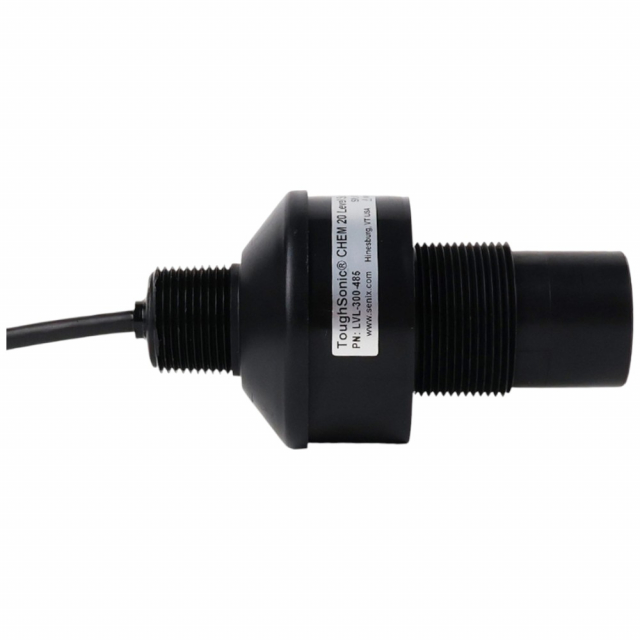

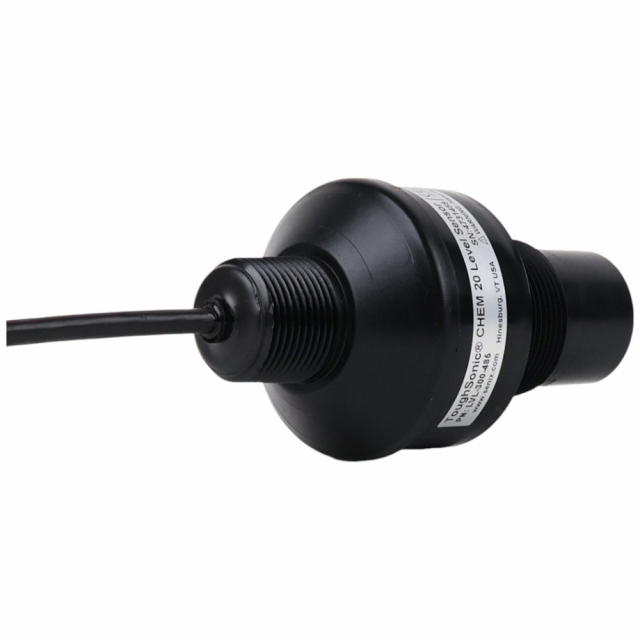

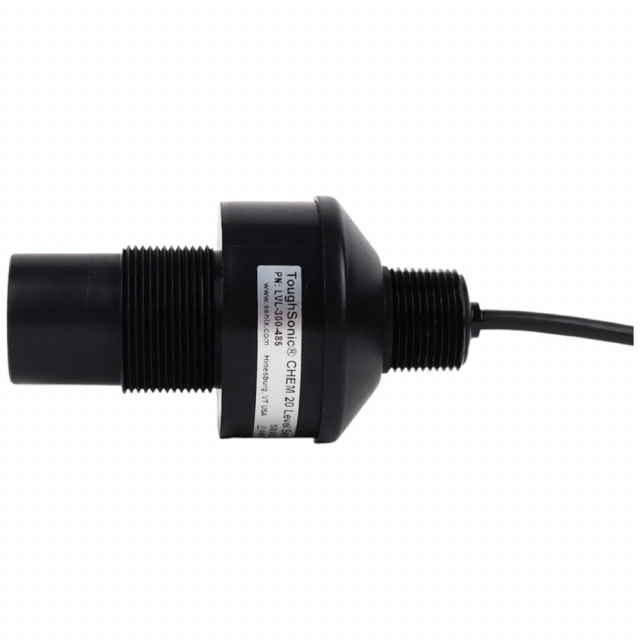

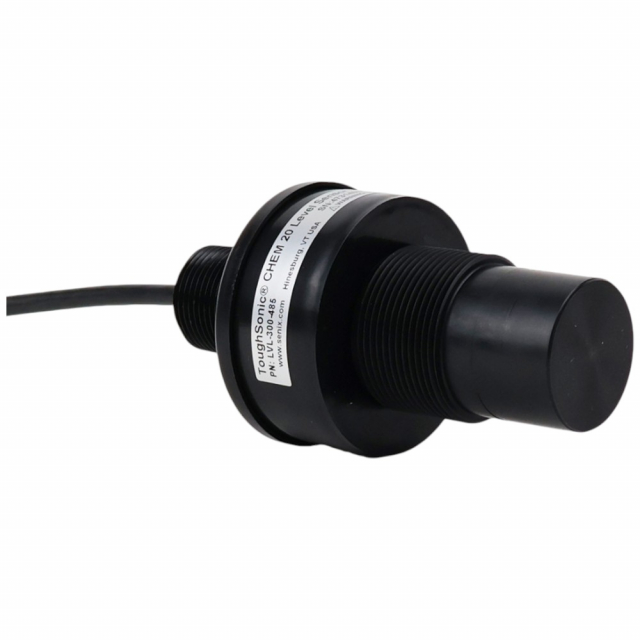

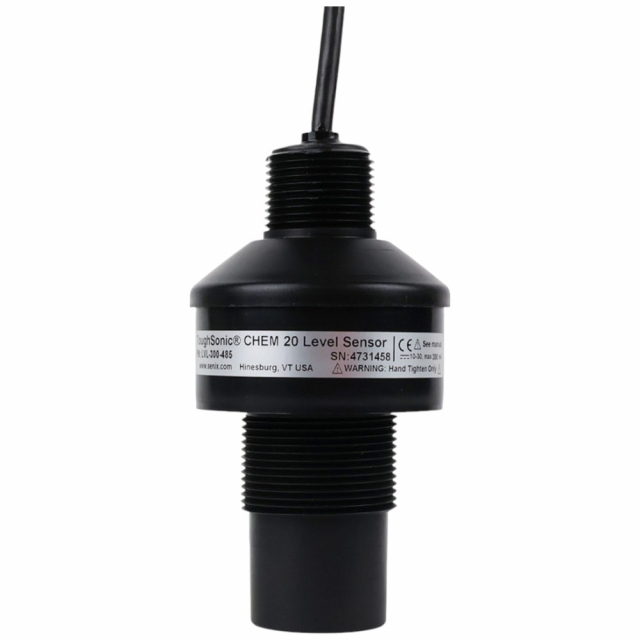

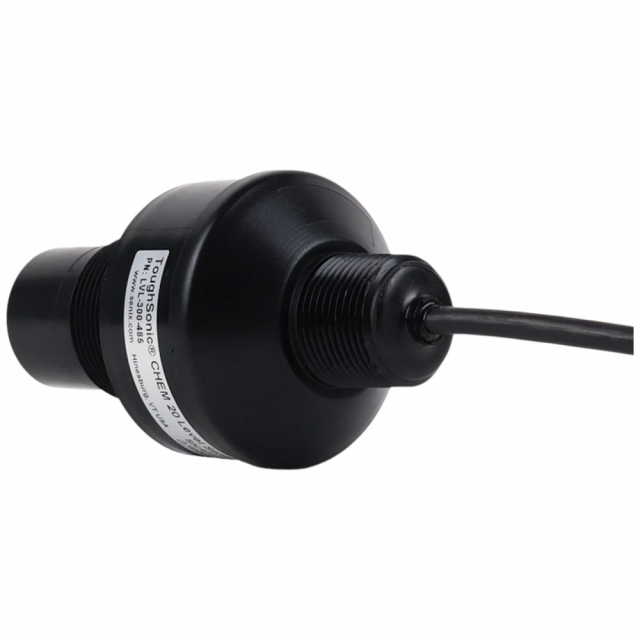

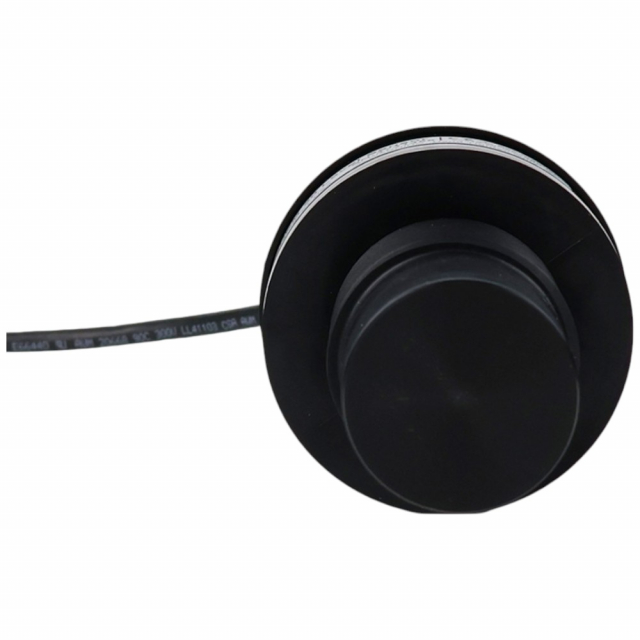

Senix, TS-200.20A1X.150FA, ToughSonic 200.20 PVDF 30mm Threaded SS Housing Ultrasonic Level Sensor, Standard Output, 150 ft Cable, RS-232 Communication
Features:
- Chemical-Resistant PVDF Housing: Ensures long-term performance in corrosive environments.
- Non-Contact Ultrasonic Technology: Accurate level measurement without sensor contact with the liquid.
- Wide Application Use: Suitable for closed or open tanks, chemical processing, and diesel fuel storage.
- Extreme Durability: Rated IP68, NEMA-4X, and NEMA-6P for reliable indoor and outdoor use.
- Advanced Configuration: Easily adjustable with SensorView™ software for setup, testing, and cloning sensors.
- Short Nose & Deadband: Measures closer to the full tank for improved accuracy.
TS-200: Versatile in Tough Environments:
- Flexible Installation Options: Top and bottom mounting threads
- Ingress Protection: IP68 (submersible), NEMA-4X, NEMA-6P
- Output Options: Five outputs plus serial data
- Temperature Compensation: Ensures accuracy in varying conditions
- PC Configurable: Adjust sensor settings easily
Measures Up to Challenging Applications:
- Chemical Tank Level Monitoring: Safe for use in chemical environments compatible with PVDF.
- Aggressive Materials & Fuel Storage Tanks: Reliable level measurement in hostile applications.
- Industrial & Factory Environments: Designed for use in the harshest conditions.
- Agriculture: Liquid level monitoring in irrigation systems, ag chemicals, livestock monitoring.
ToughSonic® TS-200 ultrasonic level sensors deliver non-contact, highly accurate liquid level measurement in chemical tanks, diesel fuel storage, and industrial liquid applications. Designed for durability, these compact and rugged sensors withstand exposure to harsh chemicals, acids, and bases. They are ideal for demanding paper processing, food production, and industrial storage applications.
