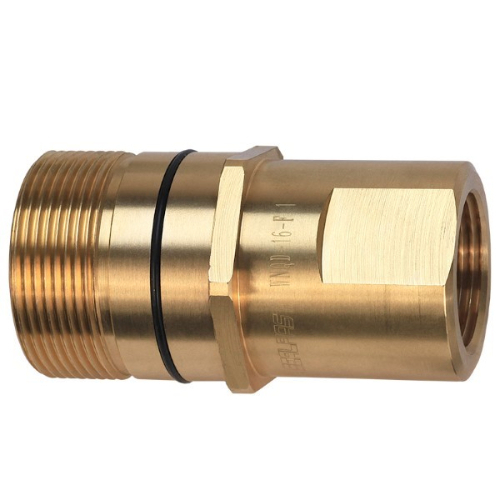

Buy Seal Fast WNQD-20-M, Quick Connect Hydraulic Plug

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Size:: Size: 1-1/4"
Type Connector:: Type Connector: Male

Seal Fast, RLC800, Zinc Plated Steel Hose Shank

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Brands

Dixon Seal Fast

Style

Hydraulic Plugs

Material

Carbon Steel

Body Size

1-1/4 in

End Size

1-1/4 in. Male NPT

Overall Length

3.71 in

Wrench Flat Size

1.88 in

Hex Size

2.13 in

Working Pressure

2900 psi

Working Temperature Range

-4 to +176 degF

Shape

Male

Features

Wing Nuts

Interchangeable With

Parker 6100
Snap-Tite 78
Aeroquip 5100
Dixon W

Applications

Seal Fast Wing Nut Quick Connects/Disconnects are low spill couplings designed to allow connection under pressure. They are recommended for oil well equipment, sand and salt spreaders, live bottom trailers, dump trailers, etc.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Brands

Dixon Seal Fast

Style

Hydraulic Plugs

Material

Carbon Steel

Body Size

1-1/4 in

End Size

1-1/4 in. Male NPT

Overall Length

3.71 in

Wrench Flat Size

1.88 in

Hex Size

2.13 in

Working Pressure

2900 psi

Working Temperature Range

-4 to +176 degF

Shape

Male

Features

Wing Nuts

Interchangeable With

Parker 6100
Snap-Tite 78
Aeroquip 5100
Dixon W

Applications

Note

Note: Please read description carefully. Do not base your order on the picture presented.
