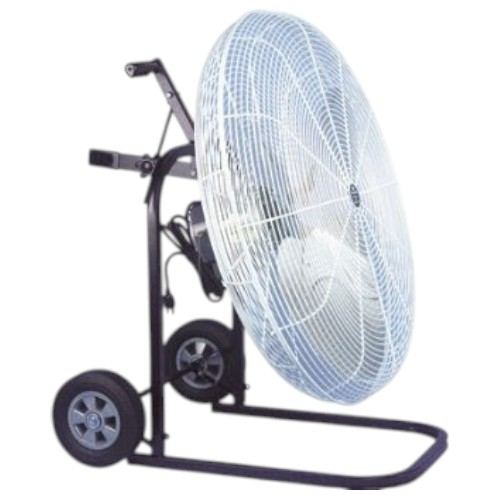

Schaefer Ventilation Equipment 24FC 24" White Fan with Cart
Part #:
24FC
Condition:
Brand New
Brand New $599.00 /Each
$739.43 You save $140.43 19%
Contact Us
Check availability
$599.00 /Each
$739.43 You save $140.43 19%
Notification
Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Manufacturer warranty Description
Features:
- Matched direct drive motors and blades for the highest achievable levels of airflow, rated up to 12,000 cfm
- Powder-coated steel guards for corrosion resistance and durability
- Energy-efficiently designed for additional cost savings, draws as little as 1.6 amps
- Thermally protected, heavy-duty, maintenance-free, 2-speed motors for long life
- Made in the USA
Schaefer OSHA-compliant circulation fans meet all OSHA safety regulations while delivering maximum airflow. These 2-speed fans have the versatility to be mounted on a ceiling, wall, pedestal or cart, which makes them the ideal cooling solution for any commercial, industrial or agricultural facility.
$599.00 /Each
$739.43 You save $140.43 19%
Contact Us
Check availability
Technical details
Main features
- Color White
- Phase 1
- Voltage 115
- Cord Included - Wired
- Drive Direct
- Diameter (inches) 24
- Blade Material Aluminum
- Speeds 2
- Number Of Wings 3
- Size (in) 24
- Power (HP) 1/4
- Oscillating No
- VFD Compatible No
- Switch On product
- Country of Origin US
- Brand Schaefer
- Product Color White
- Guard Color White
- Frequency (Hz) 60
- Nameplate Amps 2.9
- Cord Length (feet) 10
- Blade Color Metallic
- Product Dimensions (l X W X H Inches) TBD
- Air Velocity ( at 5 times diameter) TBD
- CFM (free air) 5340
- CFM Calculation Standard ANSI/AMCA Standard 230-99
- CFM Range (Free Air) 5001 - 10000
- CFM/Watt (free Air) 23.2
- Fixed or Portable Portable
- Guard Spacing (inches) 1/2 OSHA
- Product Net Weight (lbs) 64
- Air Velocity ( at 10') TBD
- Performance Test # 404
- Speed Control Compatible? No
- Guard Material powder coated steel
- Cfm (high) 5340
- Cfm/watt ( at 0.10") TBD
- Cfm/watt ( at 0.05") TBD
- Cfm (low) TBD
