Buy Schaefer 24CFO-SWDS-HV-Q, 24" Washdown Duty Fan, 1/2 HP Steel Motor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Power (hp):: Power (hp): 1/2

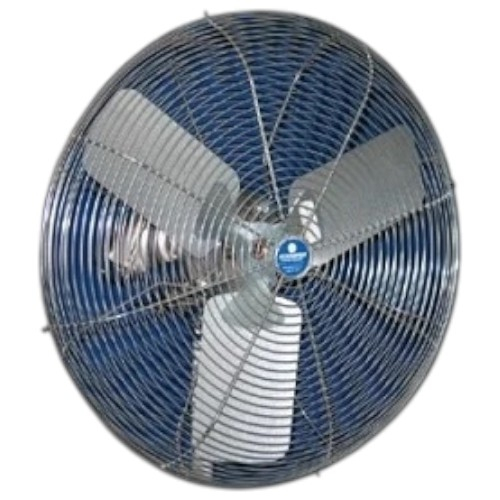

Schaefer, 24CFO-SWDS-HV-Q, 24" Washdown Duty Fan, 1/2 HP Stainless Steel Motor, SS OSHA Guards and Stainless Steel Blade

Features:

Corrosion-resistant electro-polished 304 stainless steel, OSHA-compliant guards
Extremely high airflow compared to competitive offerings

Increase productivity and improve work area safety with high-performance Schaefer washdown duty air circulators. Designed to withstand frequent washing and for long life in wet and moist environments, these fans are ideal for food and beverage processing facilities, kitchens, hospitals and other clean, corrosive or humid environments.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Air Velocity ( at 10')	TBD
Blade Color	Metallic
Brand	Schaefer
Cfm (free Air)	7330
Rpm 60 Hz Motor	1000-1200
Drive	Direct
Enclosure	TEAO
Frame Size	48YZ
Phase	1
Speeds	1
Vfd Compatible	No
Cord	Not included
Diameter (inches)	24
Frequency (hz)	60
Guard Color	Metallic
Nameplate Amps	5.4/2.7
Number Of Wings	3
Power (hp)	1/2
Product Net Weight (lbs)	45
Performance Test #	0965
Voltage	115/230
Maximum Rpm	1075
Blade Material	Stainless Steel
Cfm Calculation Standard	ANSI/AMCA Standard 230-99
Product Color	Metallic
Product Shipping Dimensions (in)	27 x 27 x 19
Speed Control Compatible?	No
Blade Pitch (degrees)	29
Cfm Range (free Air)	5001 - 10000
Distinguishing Feature	Washdown Duty
Fixed Or Portable	Fixed
Guard Material	Stainless Steel
Mount Type Recommended	SS Wall Mounts
Oscillating	No
Sound Level (dda at 10')	72
Thermal Protection	No
Country Of Origin	US
Guard Spacing (inches)	1/2 OSHA

Product Details

Air Velocity ( at 10')	TBD
Blade Color	Metallic
Brand	Schaefer
Cfm (free Air)	7330
Rpm 60 Hz Motor	1000-1200
Drive	Direct
Enclosure	TEAO
Frame Size	48YZ
Phase	1
Speeds	1
Vfd Compatible	No
Cord	Not included
Diameter (inches)	24
Frequency (hz)	60
Guard Color	Metallic
Nameplate Amps	5.4/2.7
Number Of Wings	3
Power (hp)	1/2
Product Net Weight (lbs)	45
Performance Test #	0965
Voltage	115/230
Maximum Rpm	1075
Blade Material	Stainless Steel
Cfm Calculation Standard	ANSI/AMCA Standard 230-99
Product Color	Metallic
Product Shipping Dimensions (in)	27 x 27 x 19
Speed Control Compatible?	No
Blade Pitch (degrees)	29
Cfm Range (free Air)	5001 - 10000
Distinguishing Feature	Washdown Duty
Fixed Or Portable	Fixed
Guard Material	Stainless Steel
Mount Type Recommended	SS Wall Mounts
Oscillating	No
Sound Level (dda at 10')	72
Thermal Protection	No
Country Of Origin	US
Guard Spacing (inches)	1/2 OSHA

Note

Note: Please read description carefully. Do not base your order on the picture presented.
